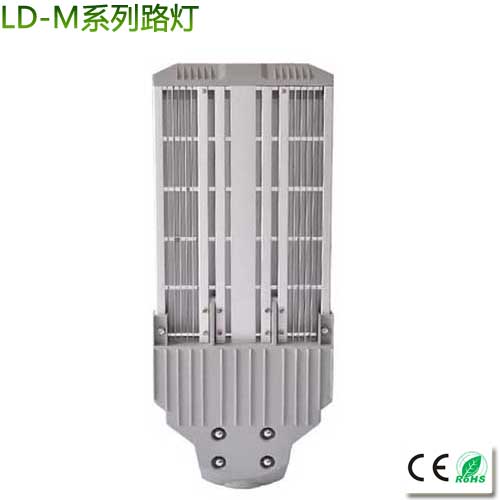

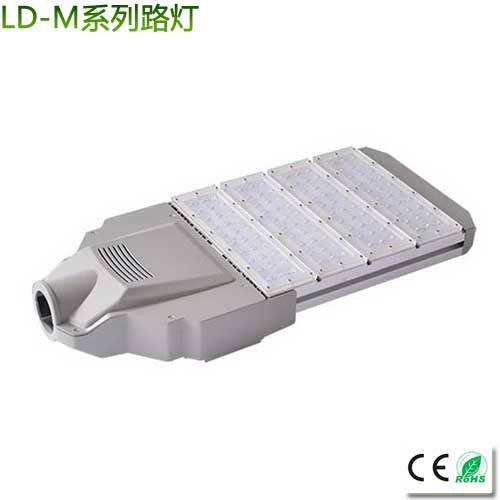

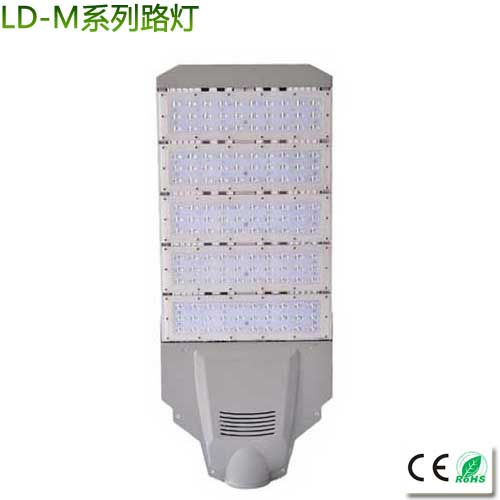

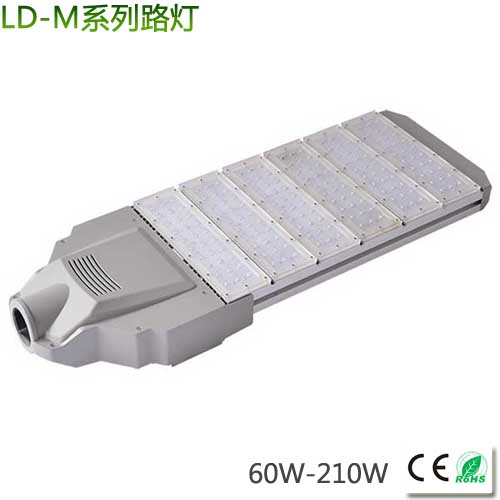

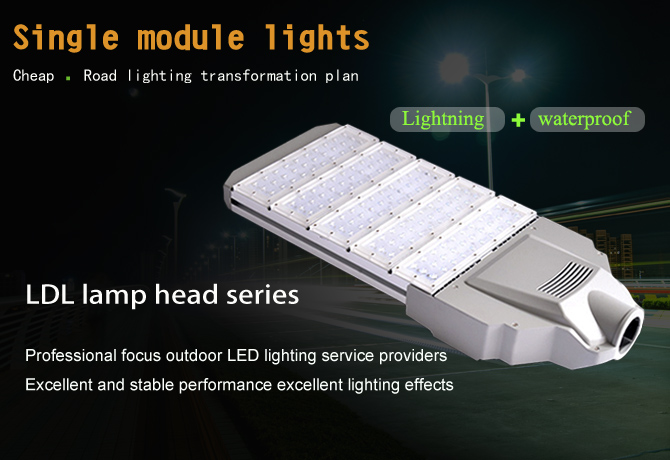

The new modular LED street light 60-210W

Home > LED street lamp > The new modular LED street light 60-210W

Product Name:
The new modular LED street light 60-210W
Model No.:
MY-LD-M60-210
Brand:
Ming Yang lighting

Product Abstract:

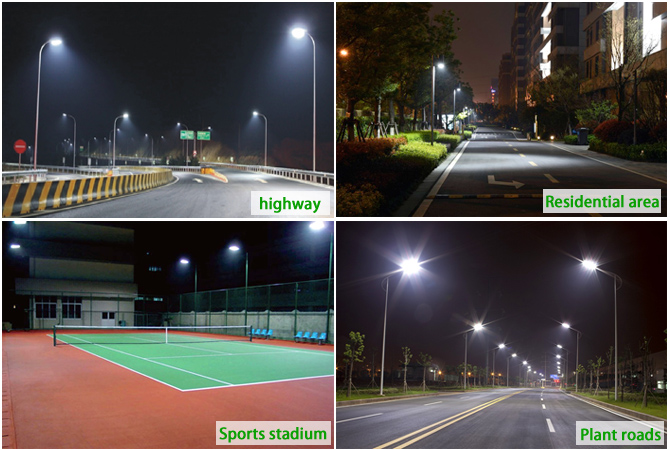

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .

Product Description

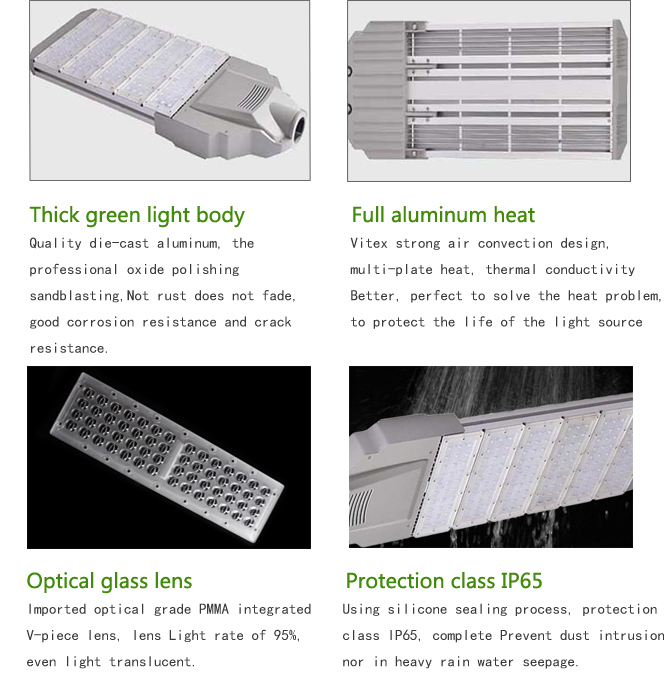

• high-pressure cast aluminum shell molding by the paint handling, strong resistance to corrosion.

• transparent heat lamps, lamp life assurance;

• a matrix of pixels arranged in uniform light, perfect light fixtures;

• luminous efficiency, soft and comfortable, no glare;

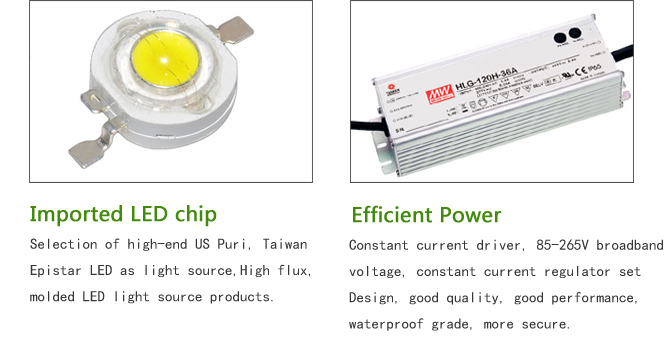

• imported chips, high luminous efficiency, long life, good stability, high reliability;

• does not contain harmful metals lead, mercury, green;

• slim profile design for easy storage and transportation and maintenance;

• Support diversification of customized services to meet the special requirements of different regions.

Product Model	MY-LD-M60-210
Input Voltage	AC85-265V
Freqency Range	50HZ-60HZ
Power Factor	>0.95
Power Efficiency	>90%
LED Power	60W、90W、120W、150W、180W、210W
LED Luminous Efficiency	90-110Lm/W
LED Intial Flux	6600-23100LM
LEDColor Temperature	3000-3500K/6000-6500K
Color Rendring Index	Ra>75
Beam Angle	120°
LED Power Supply	Waterproof drive power
Light Design	LED lamp beads + optical lens
Shell Material	Aviation aluminum + PC
Lamp Size	60W:480X305X110mm 90W:610X305X110mm 120W:750X305X110mm 150W:890X305X110mm 180W:1030X305X110mm 210W:1170X305X110mm
Working Temperature	-40°C- +50°C
IP Grade	IP65
LED Life	50000H
Power Cables	Brown: L FireWire, blue: N zero line, yellow-green: G Ground
Replace traditional light	Metal halide lamp, sodium lamp

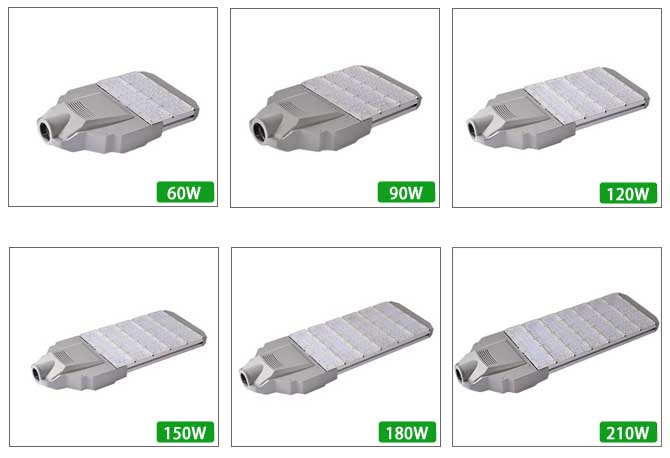

MY-LD-M60-210 Series contain: 60W, 90W, 120W, 150W, 180W, 210W, choose the right lighting power according to different places.
