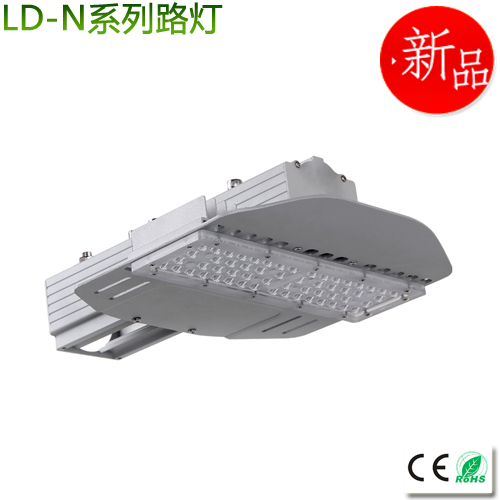

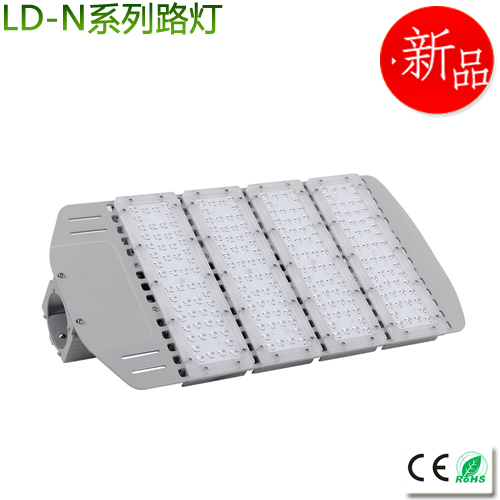

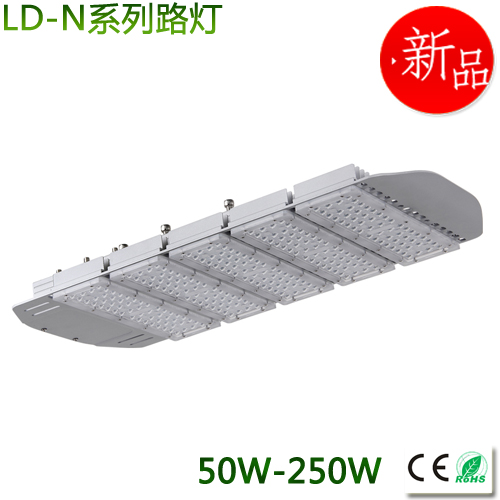

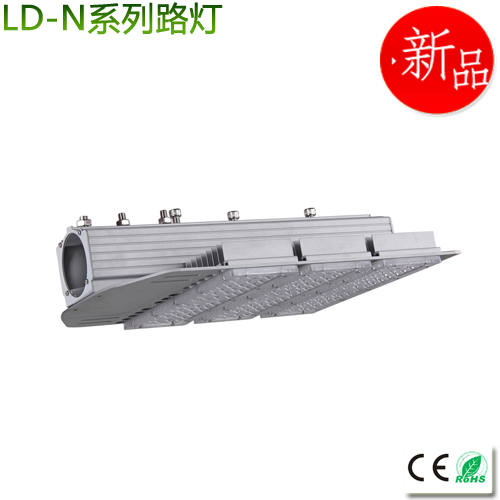

Slim integration modules LED street light 50-250W
Product Name:
Slim integration modules LED street light 50-250WModel No.:
MY-LD-N50-250Brand:
Ming Yang lighting
Product Abstract:

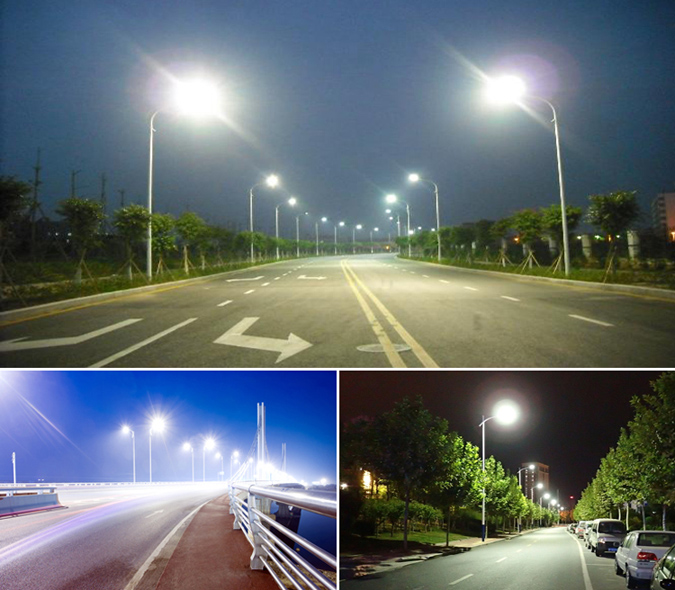

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .- Product Description

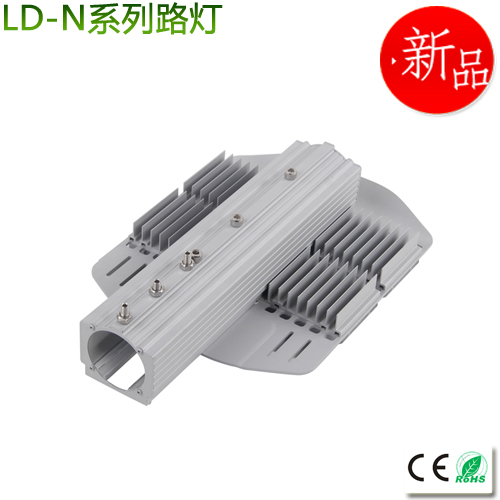

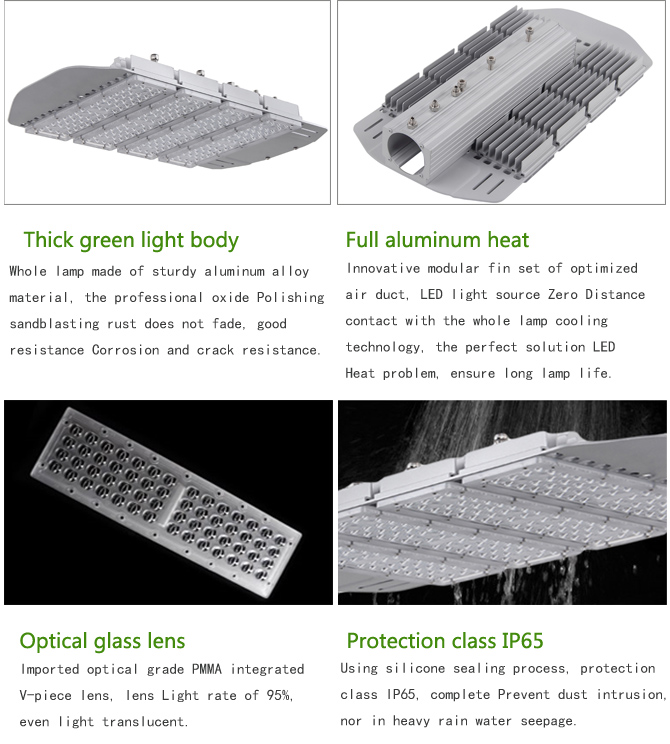

• use whole aluminum lamp cooling technology, perfect and efficient solution LED heat problem, greatly extend the life of the light source;
• PMMA optical lens, a light, an optical efficiency of 95%, non-glare, high uniformity, 0.5 above;
• avoid dust, water design, reducing pressure cleaning and maintenance, protection class IP65, suitable for outdoor harsh environments;
• slim profile design for easy storage and transportation and maintenance;
• high-pressure cast aluminum shell molding by the paint handling, strong resistance to corrosion;

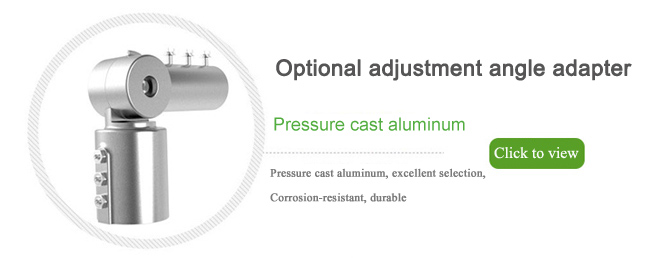

• Can be equipped with lights Ming Yang adapter, 120 ° angle adjustment.

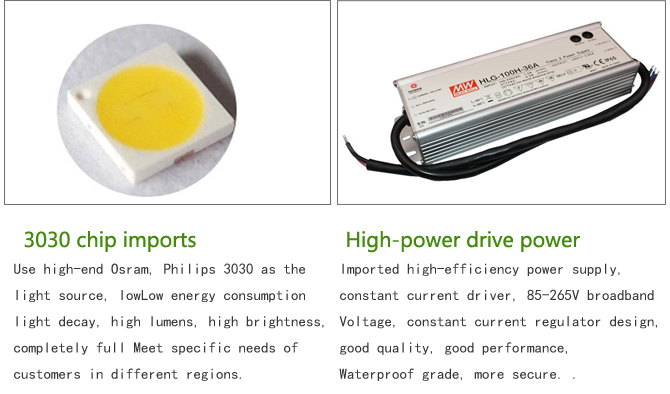

Product Model MY-LD-N50-250 Input Voltage AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency >90% LED Power 50W、100W、150W、200W、250W LED Luminous Efficiency 90-110Lm/W LED Intial Flux 5500-27500LM LEDColor Temperature 3000-3500K/6000-6500K Color Rendring Index Ra>75 Beam Angle 120° LED Power Supply Waterproof drive power Light Design LED chip + lens shell Material Aviation aluminum Lamp Size 50W:258mmX334mm
100W:258mmX423mm
150W:258mmX423mm
200W:258mmX512mm
250W:258mmX601mm

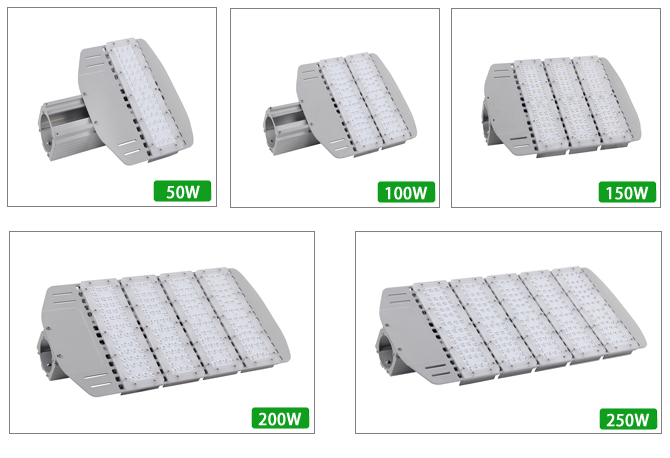

Working Temperature -30°C- +50°C IP Grade IP65 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground Replace traditional light Metal halide lamp, sodium lamp MY-LD-N50-250 series contain: 50W, 100W, 150W, 200W, 250W, choose the right lighting power according to different places.
Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .
