Product Abstract:

Applications: LED mining lamp suitable for shipyards, mines, workshops, factories, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other tall private room lighting.


Product Description

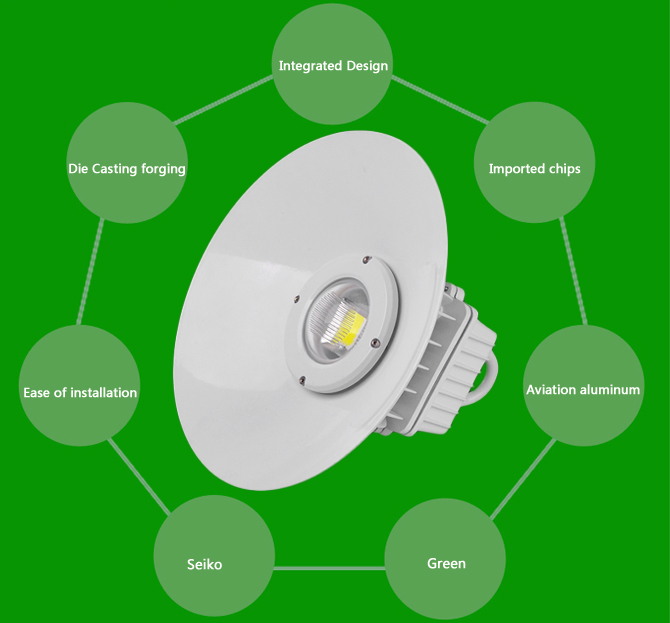

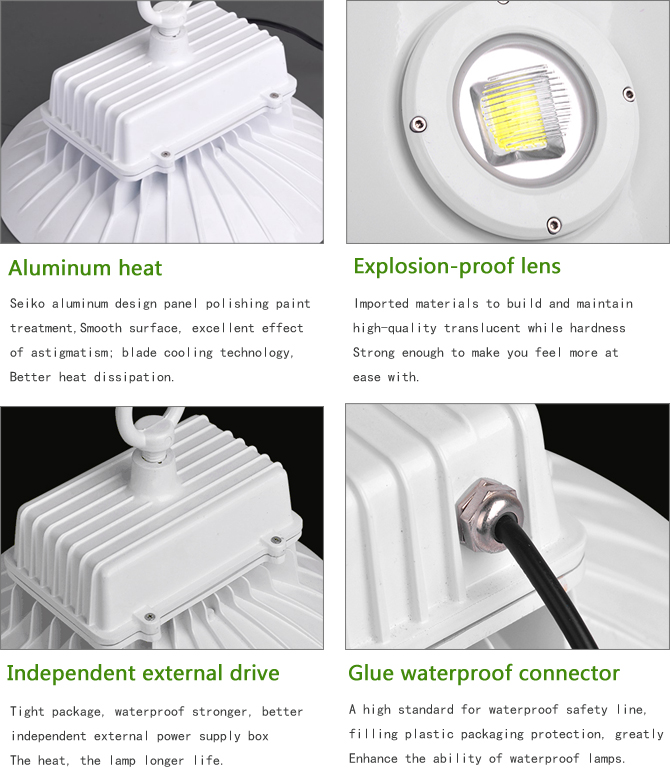

• High-purity aluminum integrated precision casting, surface anodized and hardened, good cooling effect, never rust;

• optical lens, light uniformity, for the human eye, the optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

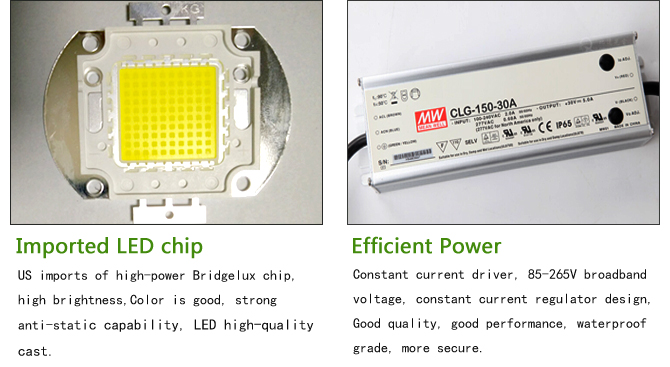

• High-power constant-current drive power, wide voltage input AC85-265V, power factor> 0.95, harmonic small;

• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, good heat dissipation, light decay, high brightness, more stable;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.









 Product Model  MY-GKD-J30-50
 Input Voltage  AC85-265V
 Freqency Range  50HZ-60HZ
 Power Factor  >0.95
 Power Efficiency  >90%
  LED Power   30W、50W
 LED Luminous Efficiency  90-110Lm/W
 LED Intial Flux   3300-5500LM
 LEDColor Temperature  warm light3000-3500K/White6000-6500K
  Color Rendring Index  Ra>80
 Beam Angle  120°
 LED Power Supply  Waterproof drive power
 Light Design  LED lamp beads + high transparent glass lens
 Shell Material   Aviation aluminum + glass
 Lamp Size  Diameter 380mm * length 295mm
 Working Temperature  -40°C- +50°C
 IP Grade  IP65
 LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
 Replace traditional light  Metal halide lamp, sodium lamp

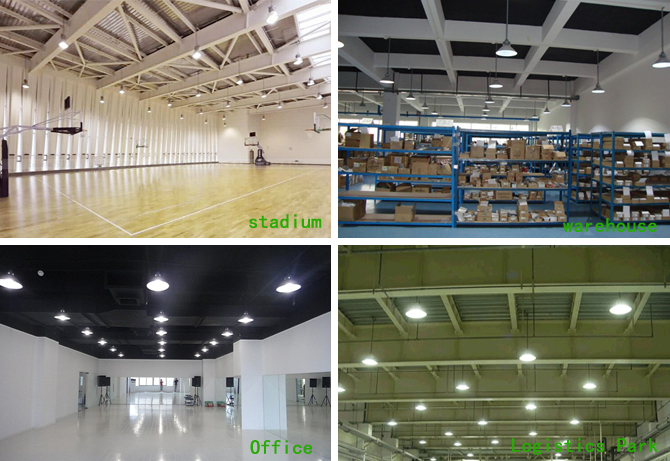

Applications: Widely used in office buildings, logistics parks, workshops, Steel plant, warehouse, highway toll stations, gas stations, shopping malls, supermarkets, exhibition halls, stadiums and other tall private room lighting.
