Product Abstract:

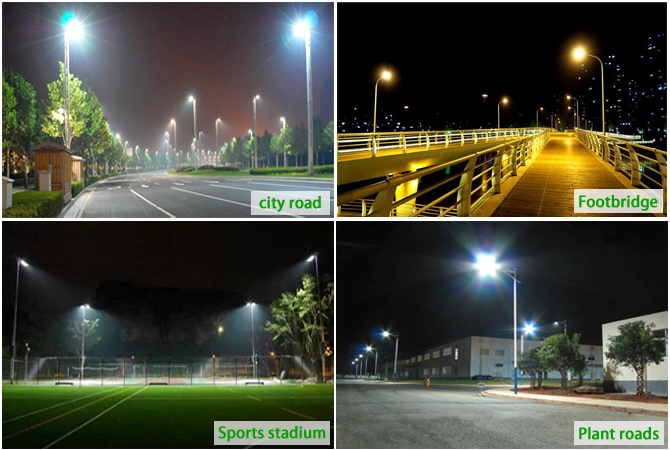

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .


Product Description

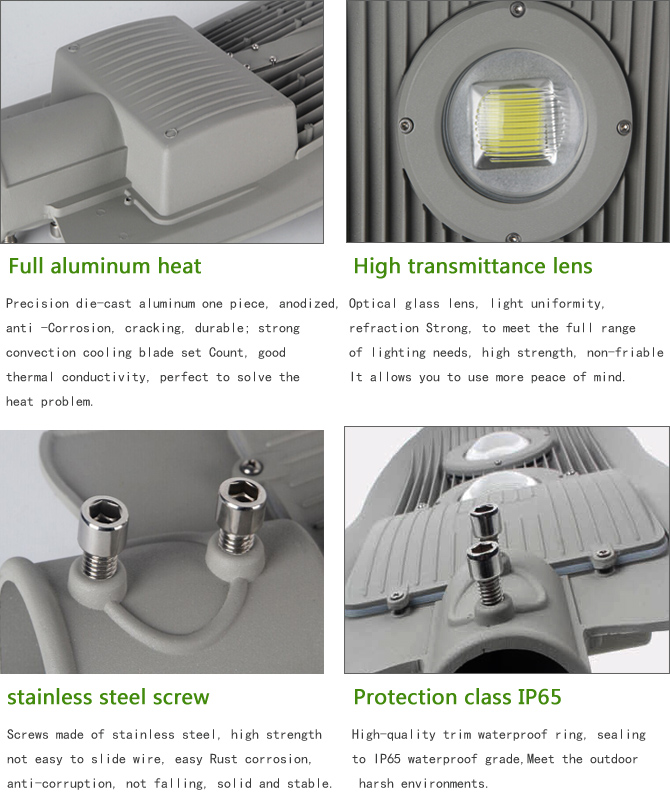

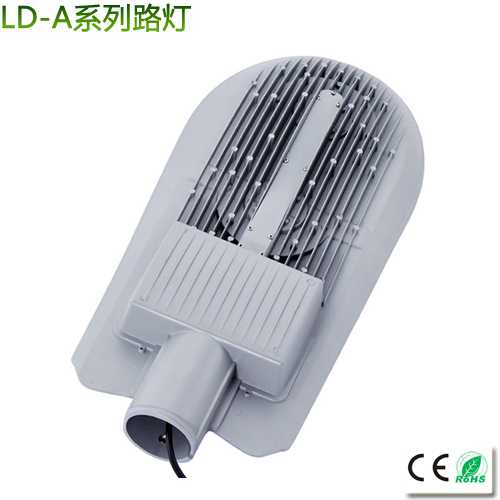

• high thermal conductivity aluminum alloy casting, strong convection design, heat more evenly, the surface anodizing, polishing, sandblasting and other processing, strong resistance to corrosion, never rust;

• optical glass lens, a light, an optical efficiency of 98%, non-glare, high uniformity, 0.5 above;

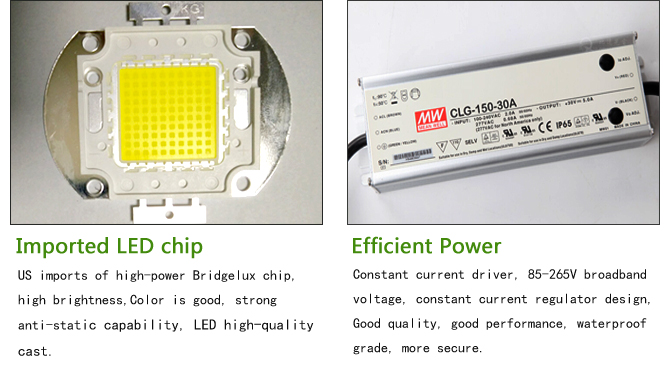

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;

• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, good heat dissipation, light decay, high brightness, more stable;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.

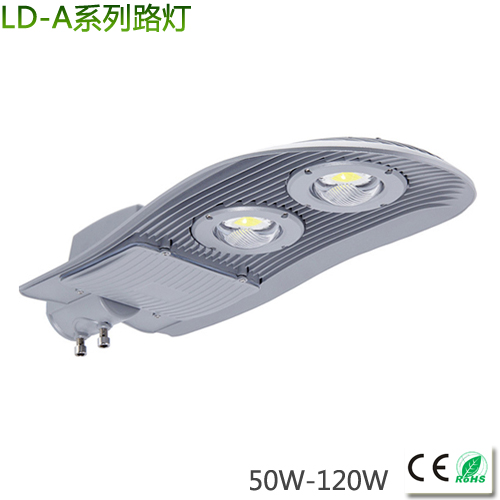

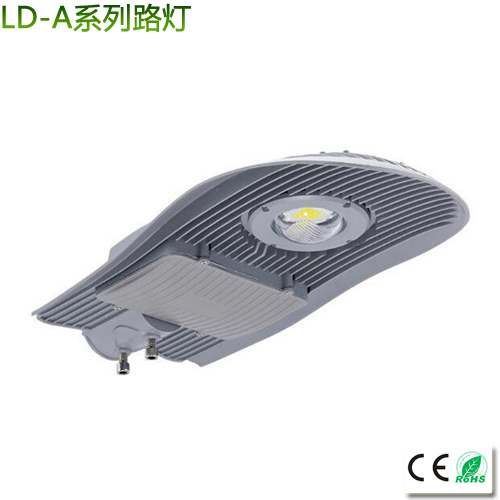

 Product Model  MY-LD-A50-120
 Input Voltage  AC85-265V
 Freqency Range  50HZ-60HZ
 Power Factor  >0.95
 Power Efficiency  >90%
 LED Power   50W、80W、120W
 LED Luminous Efficiency  90-110Lm/W
 LED Intial Flux  5500-13200LM
 LEDColor Temperature  warm light3000-3500K/White6000-6500K
 Color Rendring Index  Ra>75
  eam Angle  120°
 LED Power Supply Waterproof drive power
 Light Design  LED lamp beads + high light transmission lens
 Shell Material   Aviation aluminum + glass
 Lamp Size

 50W:490X260X75mm

 80W:565X260X75mm

 120W:710X260X77mm

 Working Temperature  -40°C- +50°C
 IP Grade  IP65
 LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
 Replace traditional light  Metal halide lamp, sodium lamp

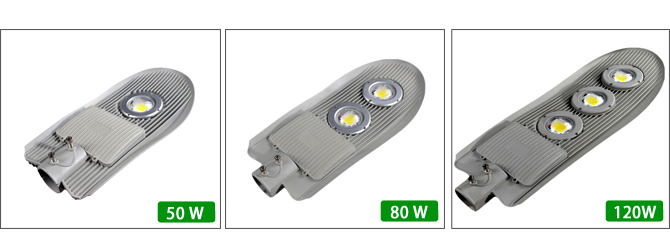

       MY-LD-A50-120 Series contain: 50W, 80W, 120W, choose the right lighting power according to different places.





Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .
