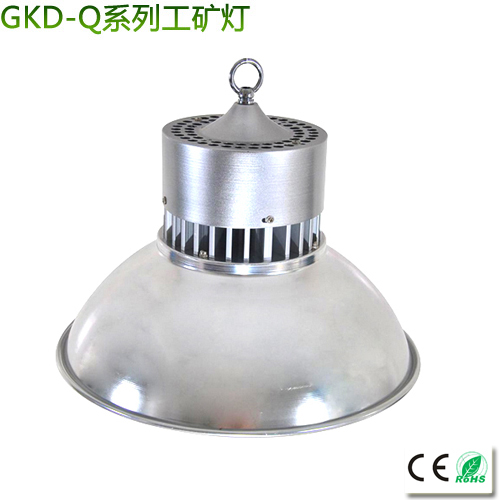

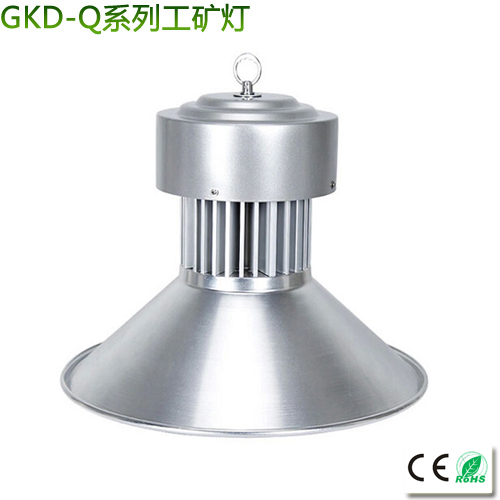

SMD LED Bay Light 20-100W

  • High Power LED Bay Light 120-200W
  • LED mining lamp 120-180W
  • Fin heat LED mining lamp 80w-300W
  • Heat pipe cooling LED Bay Light 80-300W
  • Liu fin heat pipe connected LED Bay Light 100w-500W
  • Waterproof LED Bay Light 100w-300W
  • Screw SMD LED mining lamp 20-70W
  • SMD LED Bay Light 20-100W
  • New sunflower LED Bay Light 100w-240W
  • Simple LED mining lamp 30w-50W
  • LED Bay Light 30-100W
  • New UFO disc mining lamp 100w-200W
  • New UFO fin mining lamp 100w-240W
  • Slim UFO UFO mining lamp 50w-100W
  • The new linear mining lamp 50-100W

Product Abstract:

Applications: LED mining lamp suitable for shipyards, mines, workshops, factories, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other tall private room lighting.


Product Description

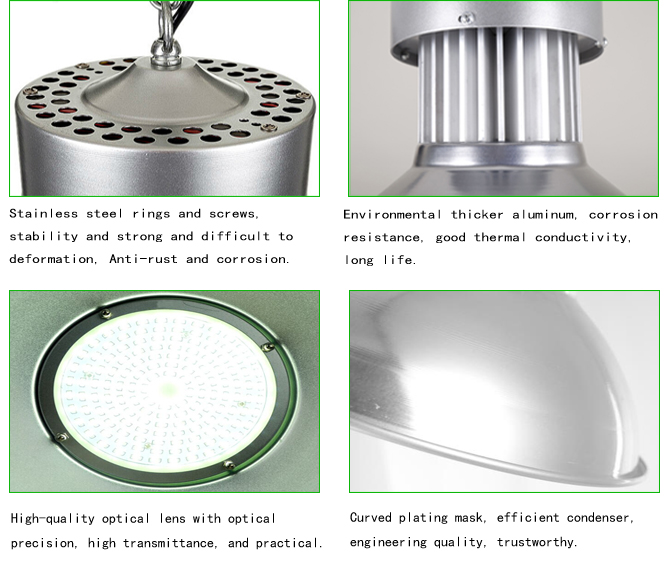

• High-purity aluminum integrated precision casting, surface anodized and hardened, good cooling effect, never rust;

• high hardness aluminum reflector and matte anodized diffuse process, light uniformity, corrosion resistance, never fade;

• optical lens, light uniformity, for the human eye, the optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

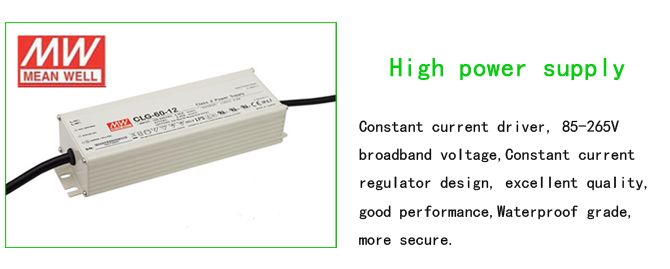

• High-power constant-current drive power, wide voltage input AC85-265V, power factor> 0.95, harmonic small;

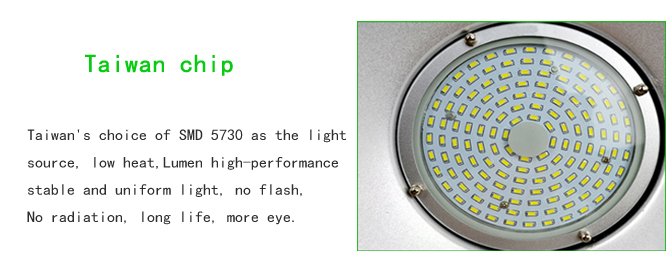

• 5730 Imported high brightness lamp beads as the light source, color rendering index Ra≥80, good heat dissipation, light decay, high brightness, more stable;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.









 Product Model  MY-GKD-I 20-100
 Input Voltage  AC85-265V
 Freqency Range  50HZ-60HZ
 Power Factor  >0.95
 Power Efficiency  >90%
 LED Power   20W、30W、50W、70W、100W
 LED Luminous Efficiency  90-110Lm/W
 LED Intial Flux   2200-11000LM
 LEDColor Temperature  warm light3000-3500K/White6000-6500K
  Color Rendring Index  Ra>80
 Beam Angle  120°、160°
 LED Power Supply  Constant current drive power
 Light Design  LED lamp beads + high-purity aluminum cover with light
 Shell Material   Aviation aluminum + PVC

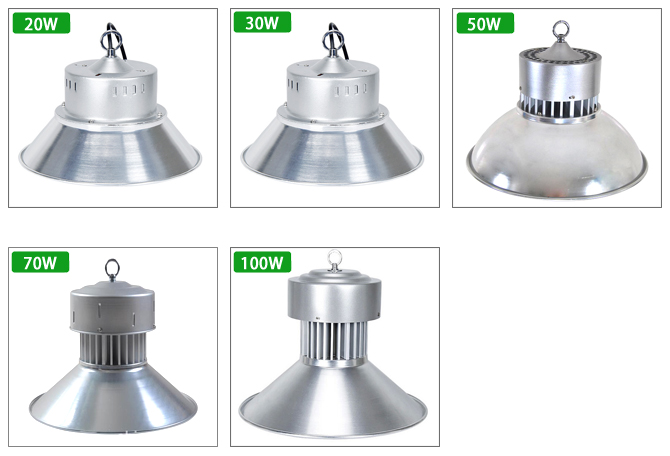

 Lamp Size

 20W:260mm*260mm*160mm

 30W:310mm*310mm*170mm

 50W:360mm*360mm*200mm

 70W:360mm*360mm*220mm

 100W:360mm*380mm*220mm

 Working Temperature  -40°C- +50°C
 IP Grade  IP45
 LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
 Replace traditional light  200W CFL / 250W sodium lamp

















 MY-GKD-I20-100 series contain: 20W, 30W, 50W, 70W, 100W, choose the right lighting power according to different places.

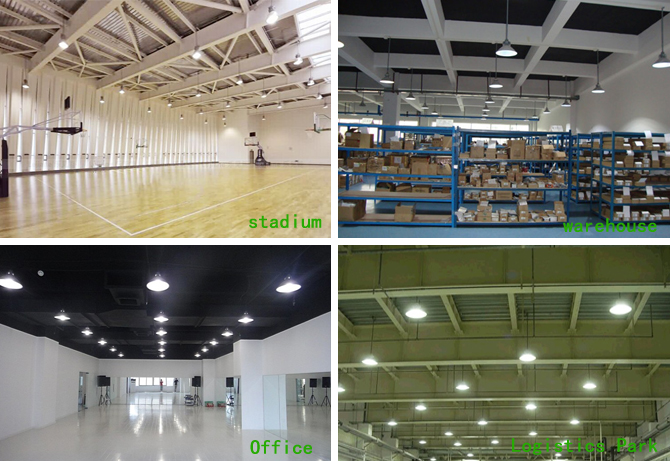

Applications: Widely used in office buildings, logistics parks, workshops, Steel plant, warehouse, highway toll stations, gas stations, shopping malls, supermarkets, exhibition halls, stadiums and other tall private room lighting.
