Racquet LED street light 50-150W
Product Name:
Racquet LED street light 50-150WModel No.:
MY-LD-C50-150Brand:
Ming Yang lighting
Product Abstract:

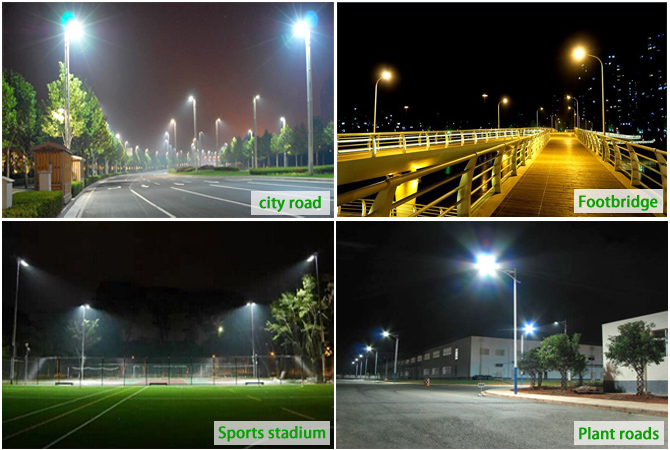

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .- Product Description
• high thermal conductivity aluminum alloy casting, strong convection design, heat more evenly, the surface anodizing, polishing, sandblasting and other processing, strong resistance to corrosion, never rust;
• optical glass lens, a light, an optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

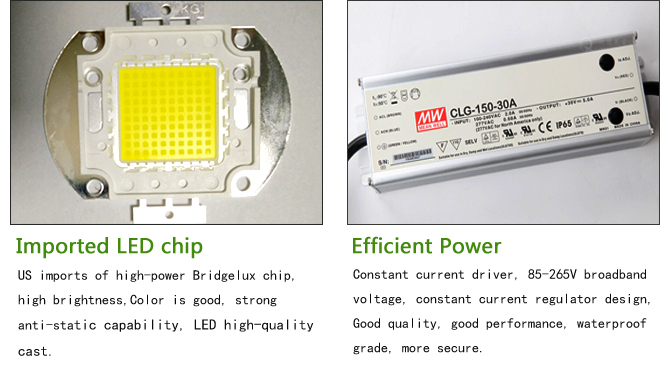

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;
• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, good heat dissipation, light decay, high brightness, more stable;
• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.
Product Model MY-LD-C50-150 Input Voltage AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency >90% LED Power 50W、100W、150W LED Luminous Efficiency 90-110Lm/W LED Intial Flux 5500-16500LM LEDColor Temperature warm light3000-3500K/White6000-6500K Color Rendring Index Ra>75 Beam Angle 120° LED Power Supply Waterproof drive power Light Design LED chip + optical lens Shell Material Aviation aluminum + glass Lamp Size 50W:550X250X80mm
100W:690X270X80mm
150W:800X310X100mm

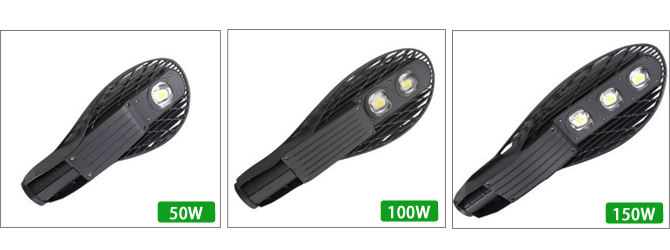

Working Temperature -40°C- +50°C IP Grade IP65 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground Replace traditional light Metal halide lamp, sodium lamp MY-LD-C50-150 series contain: 50W, 100W, 150W, choose the right lighting power according to different places.
Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .
