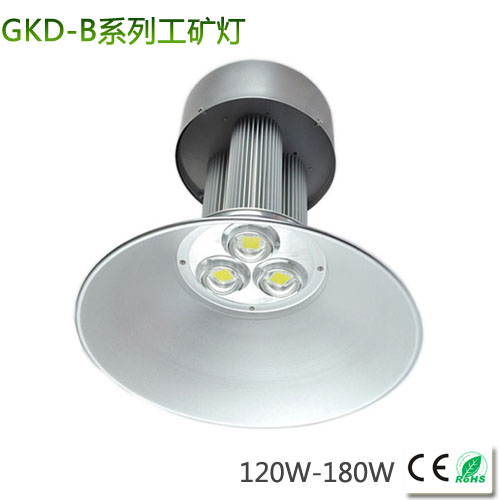

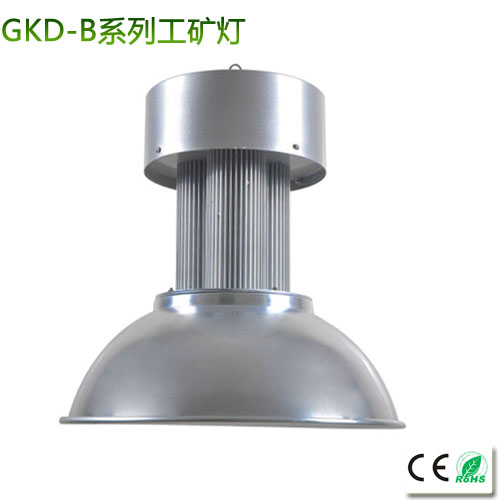

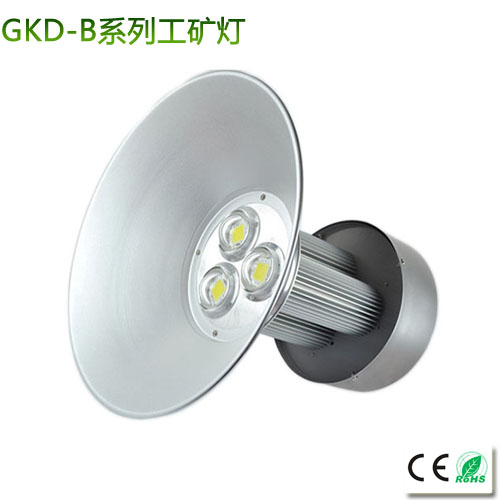

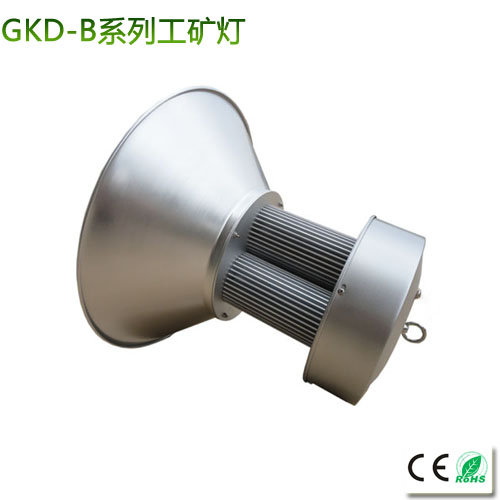

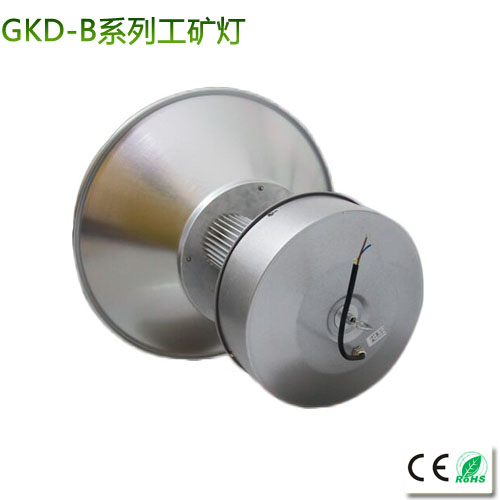

LED mining lamp 120-180W

  • High Power LED Bay Light 120-200W
  • LED mining lamp 120-180W
  • Fin heat LED mining lamp 80w-300W
  • Heat pipe cooling LED Bay Light 80-300W
  • Liu fin heat pipe connected LED Bay Light 100w-500W
  • Waterproof LED Bay Light 100w-300W
  • Screw SMD LED mining lamp 20-70W
  • SMD LED Bay Light 20-100W
  • New sunflower LED Bay Light 100w-240W
  • Simple LED mining lamp 30w-50W
  • LED Bay Light 30-100W
  • New UFO disc mining lamp 100w-200W
  • New UFO fin mining lamp 100w-240W
  • Slim UFO UFO mining lamp 50w-100W
  • The new linear mining lamp 50-100W

Product Abstract:

Applications: LED mining lamp suitable for shipyards, mines, workshops, factories, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other tall private room lighting.


Product Description

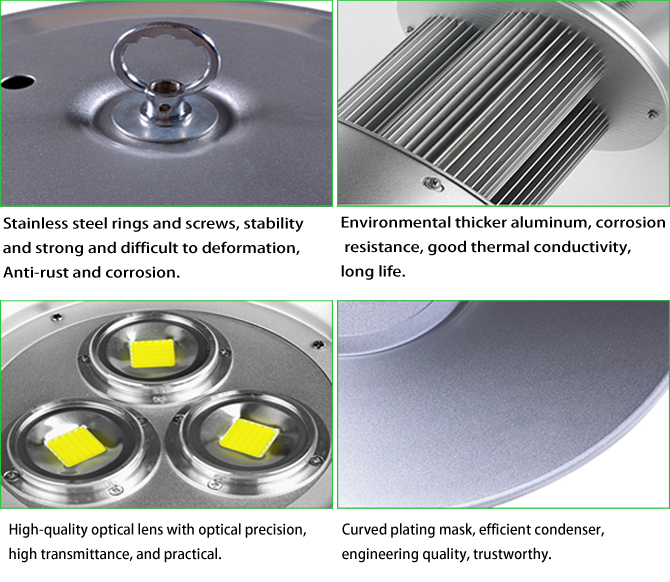

• High-purity aluminum integrated precision casting, surface anodized and hardened, the column grid heat better, never rust;

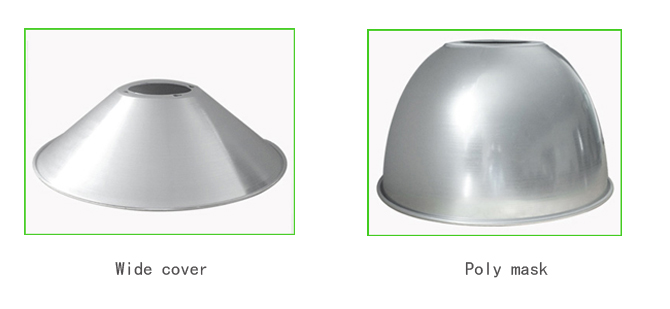

• high hardness aluminum reflector and matte anodized diffuse process, light uniformity, corrosion resistance, never fade;

• Mitsubishi arc lens optical grade, light uniformity, for the human eye, the optical efficiency of 98%, non-glare, high uniformity, 0.5 above;

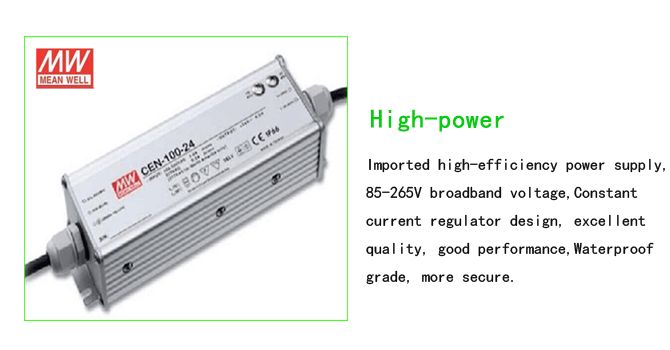

• High-power constant-current drive power, wide voltage input AC85-265V, power factor> 0.95, harmonic small;

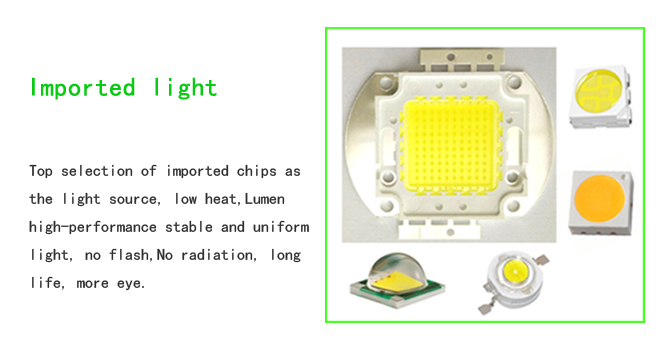

• Imported chip COB package as the light source, color rendering index Ra≥80, good heat dissipation, light decay, high brightness, more stable;

• the entire lighting efficiency 95-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.







 Product Model  MY-GKD-B120-180
 Size Lamps and Lanterns

  120W:astigmatism:500*425mm Condensing:420*520mm

  150W:astigmatism:500*465mm Condensing:420*596mm

  180W:astigmatism:500*495mm Condensing:420*590mm

 Input Voltage  AC85-265V
 Freqency Range  50HZ-60HZ
 Power Factor  >0.95
 Power Efficiency  >90%
 LED Power   120W、150W、180W
 LED Luminous Efficiency  95-110Lm/W
 LED Intial Flux  13200-19800LM
 LEDColor Temperature  Warm White:3000K、 White6500K
 Color Rendring Index  Ra>80
 Beam Angle  60°、90°、120°
 LED Power Supply  Built-in waterproof drive power
 Light Design  LED lamp beads + optical glass lens
 Shell Material   Seiko aerospace aluminum + glass
 Working Temperature  -40°C- +50°C
 IP Grade  IP45
 LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground

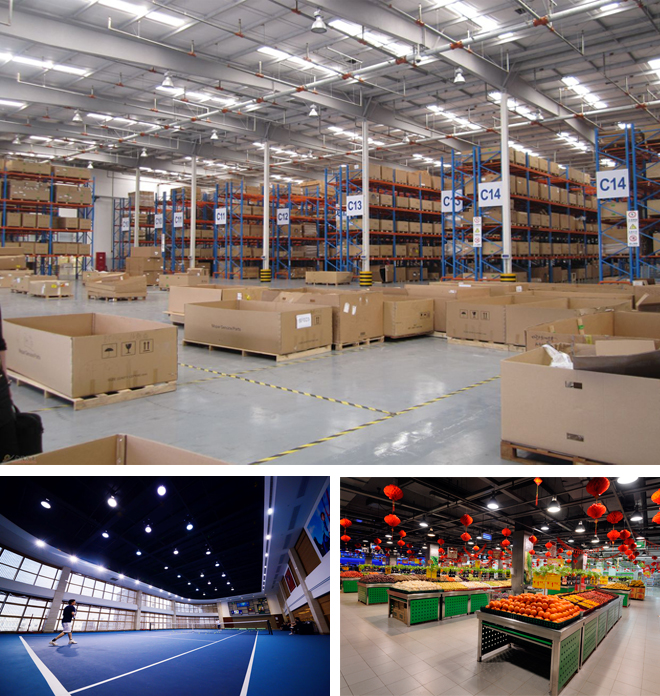

Gao is widely used in the plant, other places need lighting workshop warehouses, logistics centers, exhibition halls, shipyards, mines, highway toll stations, gas stations, supermarkets, farmers markets.
