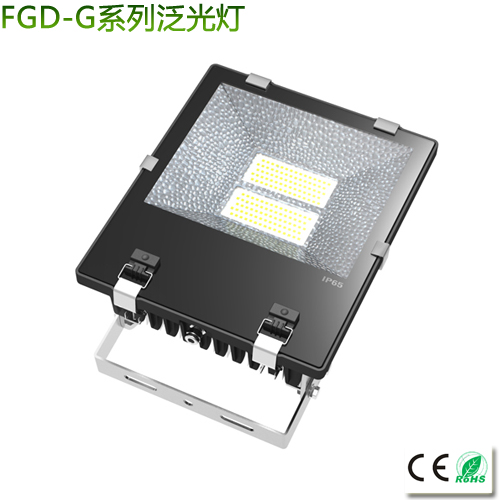

LED floodlight 30w-200W cooling fins

  • Integrated LED floodlight 10w-50W
  • High power LED floodlight 70w-100W
  • High power LED floodlight 100w-120W
  • High power LED floodlight 150w-180W
  • Multiple satellites integrated LED floodlight 200w-300W
  • The new integrated LED floodlight 30w-150W
  • The new fin LED floodlight 30w-200W
  • LED floodlight 30w-200W cooling fins

Product Abstract:

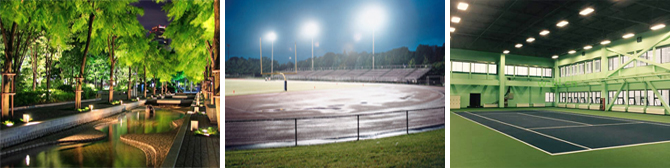

Mainly used in building exterior lighting, landscape lighting, logo and indication lighting, billboard, square lighting, factory workshop, site lighting, mine lighting, stadium, stadium, warehouse, rockeries, bridges and other outdoor venues.


Product Description

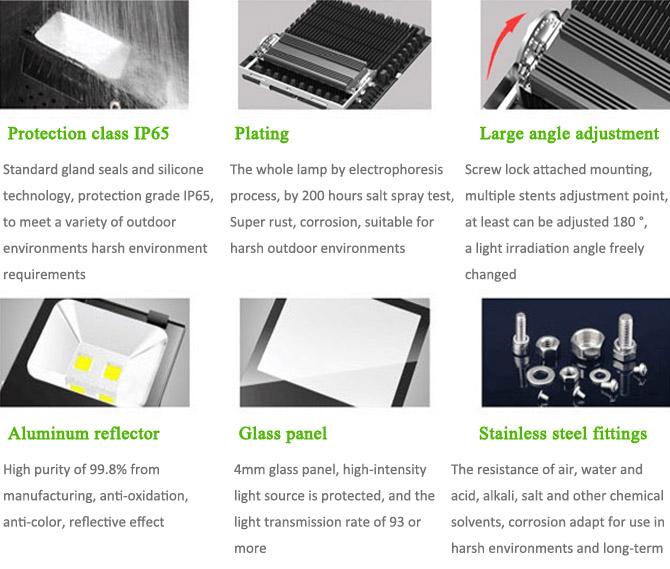

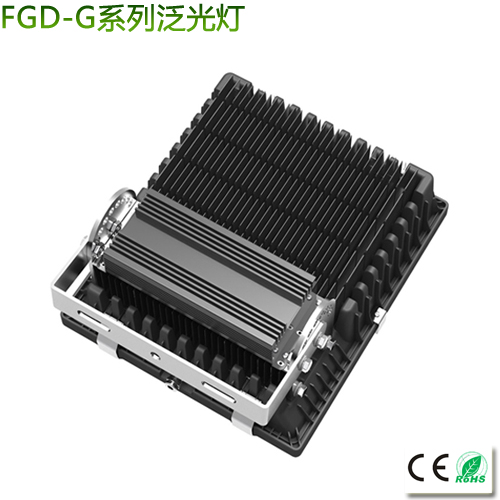

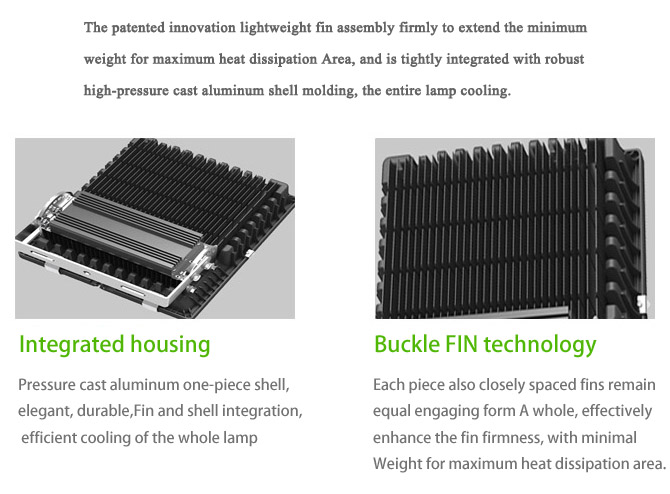

• high-pressure cast aluminum one-piece shell, elegant, durable, heat sink and housing integration, the overall thermal efficiency, into a lamp life up to 50,000 hours;

• High-purity aluminum reflector, oxidation, anti-color, reflective effect, glass panels, high-intensity light protection, light transmission rate of 93%;

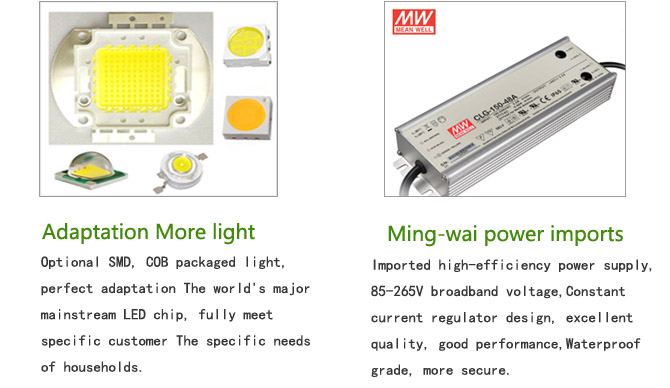

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic small;

• using multi-chip integrated package LED light source, light uniformity, luminous efficiency 90-110LM / W, color rendering index Ra≥80, good heat dissipation, light decay; pure light color, no ghosting;

• look through the entire light paint and sand blasting, not only corrosion resistance, and more conducive to heat the product, stainless steel screws and spare parts for a variety of harsh environments in the long-term use;

• using special waterproof connector and silicone ring seal technology, protection grade IP65;

• Professional design, light body lightweight, attractive appearance, installation is simple.

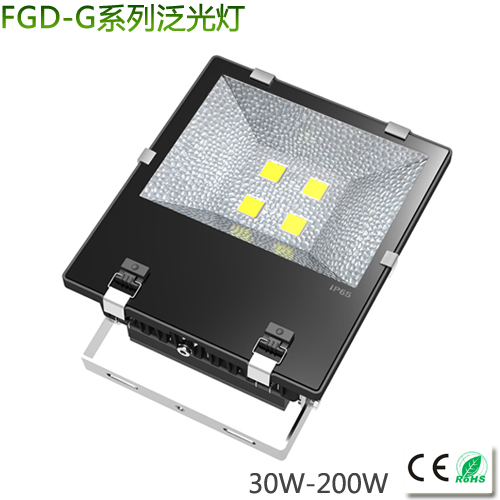

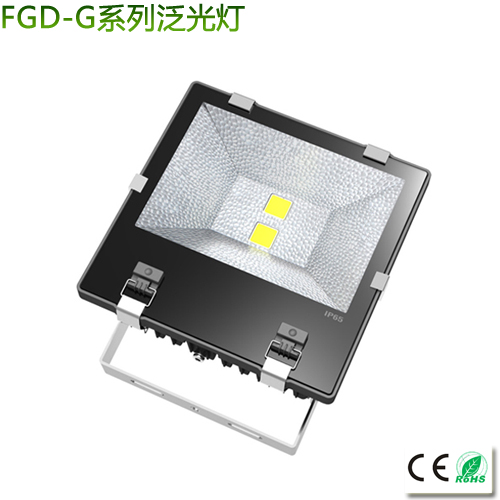

  Product Model  MY-FGD-G30-200
  Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   30W、50W、70W、100W、150W、200W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  3300-22000LM
  LEDColor Temperature  3000-3500K、6000-6500K
  Color Rendring Index  Ra>75
  Beam Angle  120°
  LED Power Supply  External waterproof drive power
  Light Design  LED lamp beads + optical glass lens
  Shell Material   Aviation aluminum + glass
  Lamp Size

 30W:215X178X81mm

 50W:253X194X95mm

 70W:291X250X116mm

 100W:341X250X116mm

 150W:375X310X187mm

 200W:395X340X187mm

  Working Temperature  -40°C- +50°C
  IP Grade  IP65
  LED Life  50000H
  Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground

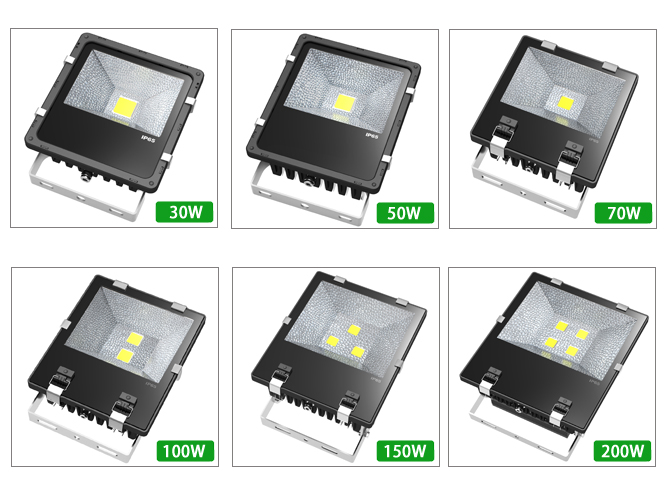

 MY-FGD-G30-200, COB package series contain: 30W, 50W, 70W, 100W, 120W, 150W, choose the right lighting power according to different places.



Mainly used in building exterior lighting, landscape lighting, logo and indication lighting, billboard, square lighting, factory workshop, site lighting, mine lighting, stadium, stadium, warehouse, rockery, bridge lighting and other places.
