LED Bay Light 30-100W
Product Name:
LED Bay Light 30-100WModel No.:
MY-GKD-A30-100Brand:
Ming Yang lighting
Product Abstract:
Applications: LED mining lamp suitable for shipyards, mines, workshops, factories, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other tall private room lighting.- Product Description

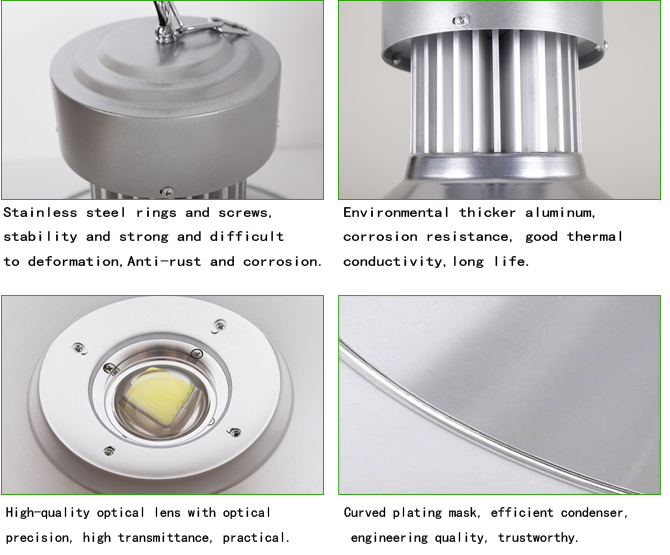

• High-purity aluminum integrated precision casting, surface anodized and hardened, the column grid heat better, never rust;

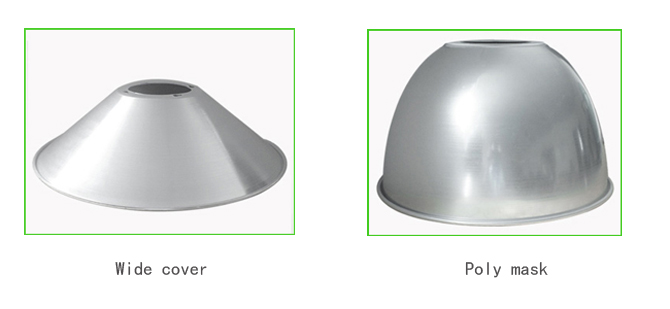

• high hardness aluminum reflector and matte anodized diffuse process, light uniformity, corrosion resistance, never fade;
• Mitsubishi arc lens optical grade, light uniformity, for the human eye, the optical efficiency of 98%, non-glare, high uniformity, 0.5 above;

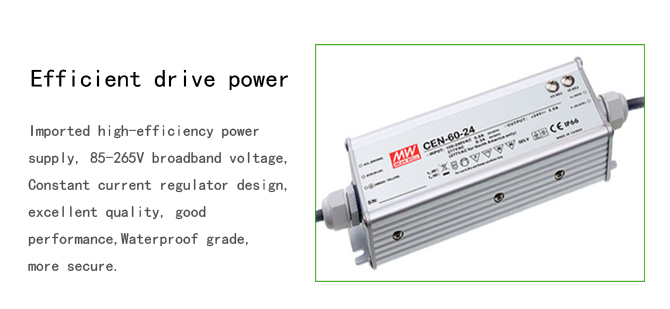

• High-power constant-current drive power, wide voltage input AC85-265V, power factor> 0.95, harmonic small;

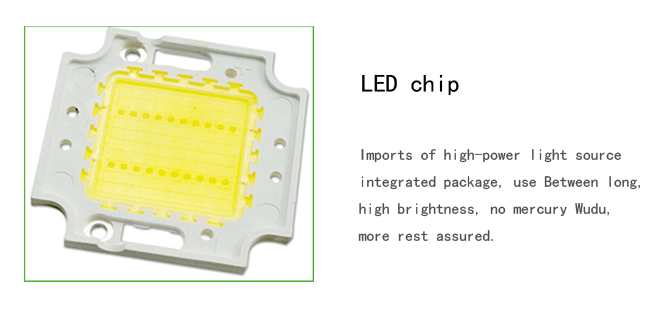

• Imported chip COB package as the light source, color rendering index Ra≥80, good heat dissipation, light decay, high brightness, more stable;
• the entire lighting efficiency 95-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.

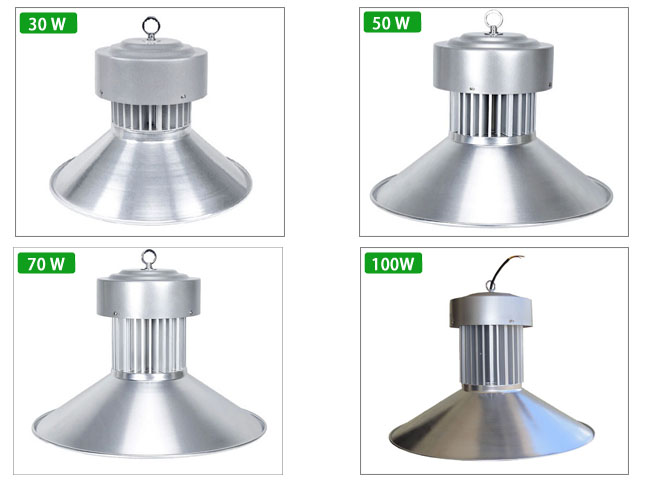

Product Model MY-GKD-A30-100 Size Lamps and Lanterns 30W:astigmatism:410*280mm Condensing:390*370mm
50W:astigmatism:500*380mm Condensing:460*475mm
70W:astigmatism:500*380mm Condensing:460*475mm
100W:astigmatism:500*410mm Condensing:470*500mm
Input Voltage AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency >90% LED Power 30W、50W、70W、100W LED Luminous Efficiency 95-110Lm/W LED Intial Flux 3300-11000LM LEDColor Temperature warm light:2700K、White:6500K Color Rendring Index Ra>80 Beam Angle 60°、90°、120° LED Power Supply Waterproof power supply Light Design LED lamp beads + optical glass lens Shell Material Seiko aerospace aluminum Working Temperature -40°C- +50°C IP Grade IP45 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground MY-GKD-A30-100 Series contain: 30W, 50W, 70W, 100W, choose the right lighting power according to different places.

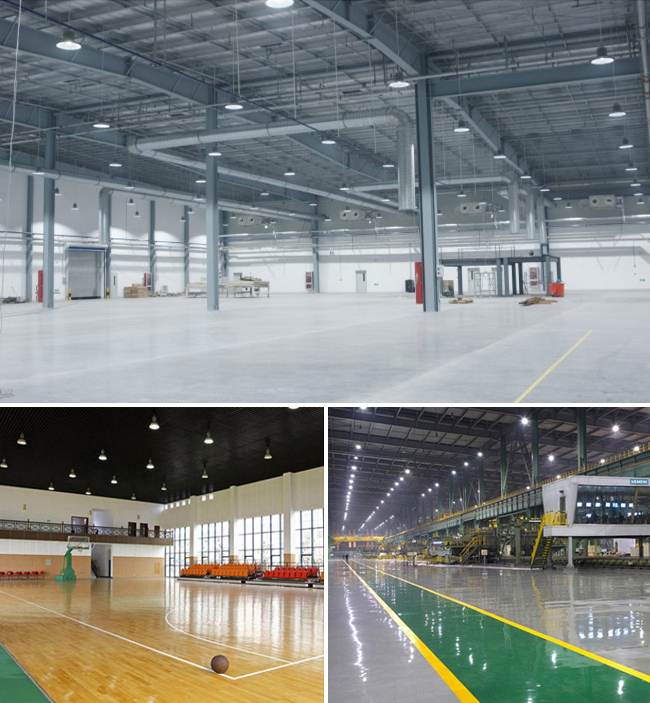

Gao is widely used in the plant, other places need lighting workshop warehouses, logistics centers, exhibition halls, shipyards, mines, highway toll stations, gas stations, supermarkets, farmers markets.
- Related Products

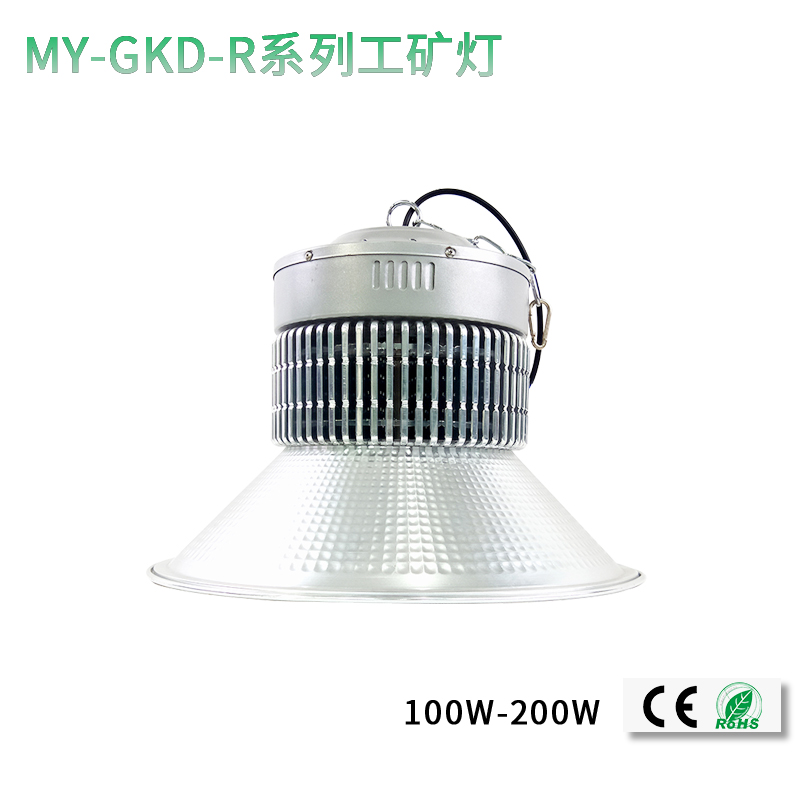

- High Power LED Bay Light 120-200W
