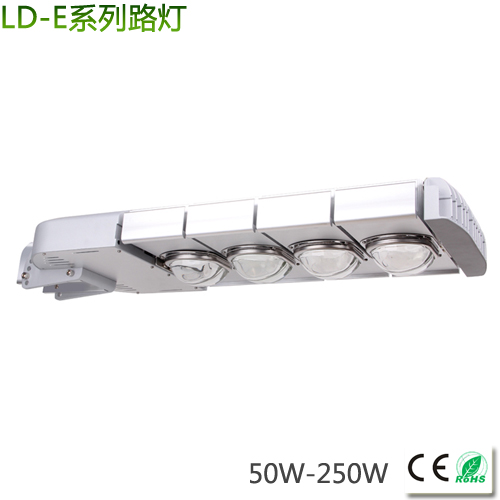

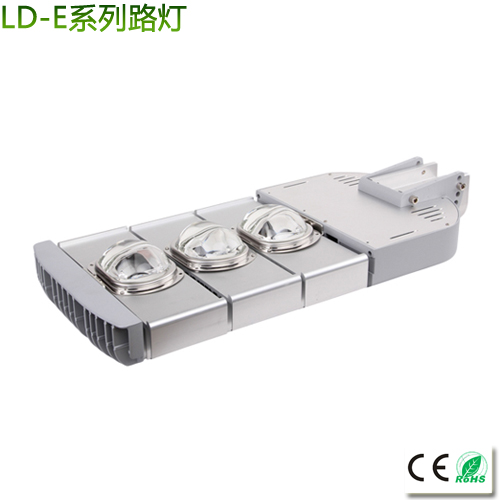

Integrated modules LED street light 100w-250W

  • Serpentine LED street light 50-120W
  • Bovine LED street light 80-160W
  • Racquet LED street light 50-150W
  • Sword LED lights 30w-150W
  • Beans LED lights 30w-150W
  • Integrated modules LED street light 100w-250W
  • High-power LED street light 60-240W modules
  • High-power LED street light 42-112W flat
  • Adjustable modules LED lights 60w-240W
  • LED street light adapter
  • The new modular LED street light 40-280W
  • Integrated LED lights 30w-150W
  • The new integrated LED street light 50-300W
  • The new modular LED street light 60-210W
  • Slim integration modules LED street light 50-250W

Product Abstract:

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .


Product Description

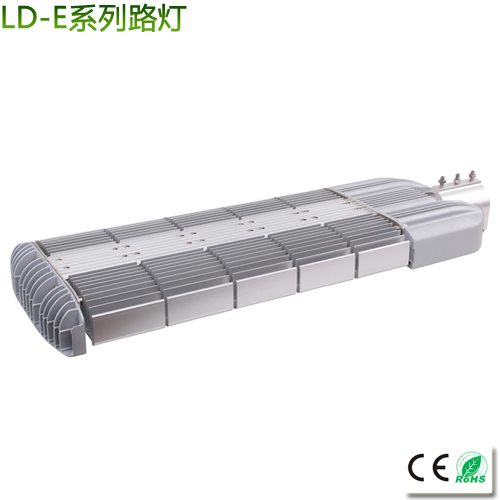

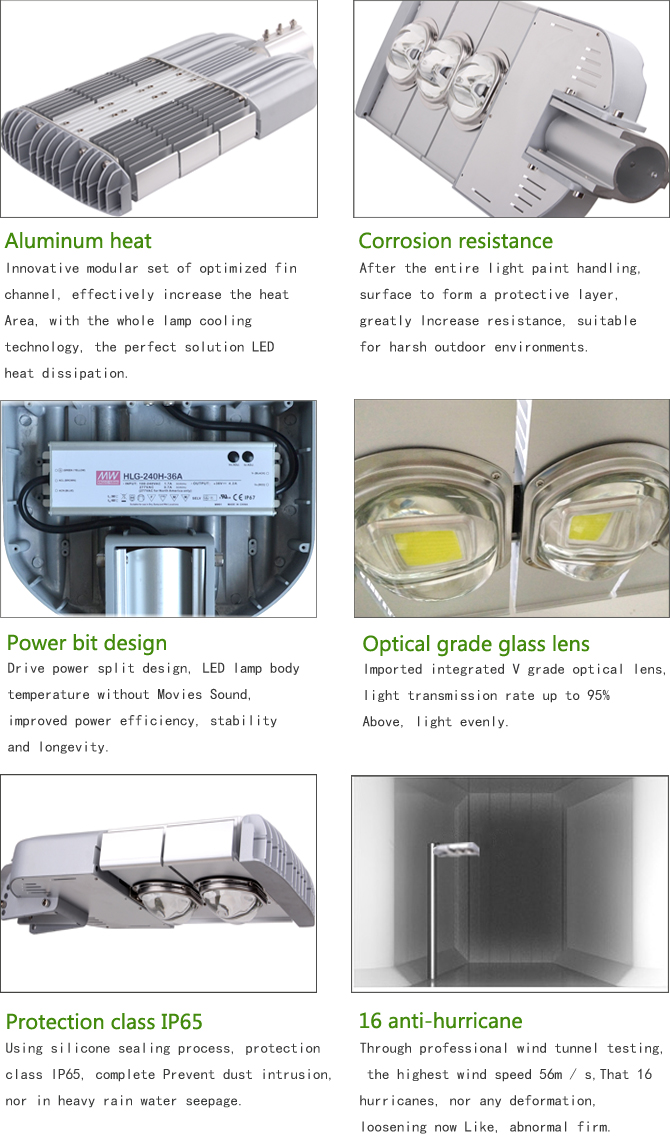

• use whole aluminum lamp cooling technology, perfect and efficient solution LED heat problem, greatly extend the life of the light source;

• optical glass lens, a light, an optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

• avoid dust, water design, reducing pressure cleaning and maintenance, protection class IP65, suitable for outdoor harsh environments;

• slim profile design for easy storage and transportation and maintenance;

• high-pressure cast aluminum shell molding by the paint handling, strong resistance to corrosion;

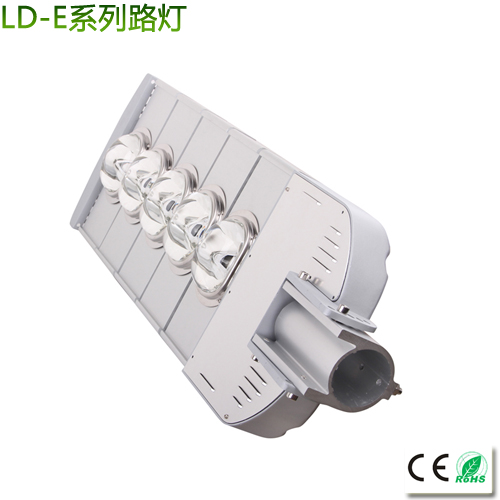

• the rear end with adjustable angle design, greatly improving the ability to adapt to the road surface.







  Product Model  MY-LD-E100-250
  Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   100W、150W、200W、250W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  11000-27500LM
  LEDColor Temperature  warm light3000-3500K/White6000-6500K
  Color Rendring Index  Ra>75
  Beam Angle  120°

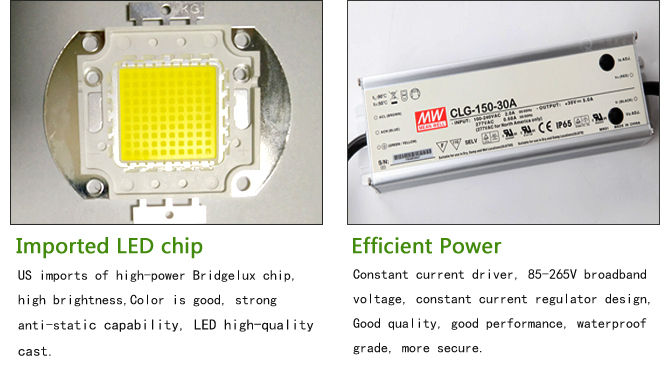

  LED Power Supply  Waterproof drive power
  Light Design  LED lamp beads + optical lens
  Shell Material   Aviation aluminum + glass
  Lamp Size

 100W:544X280X105mm

 150W:652X280X105mm

 200W:760X280X105mm

 250W:868X280X105mm

  Working Temperature  -40°C- +50°C
  IP Grade  IP65
  LED Life  50000H
  Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
  Replace traditional light  Metal halide lamp, sodium lamp

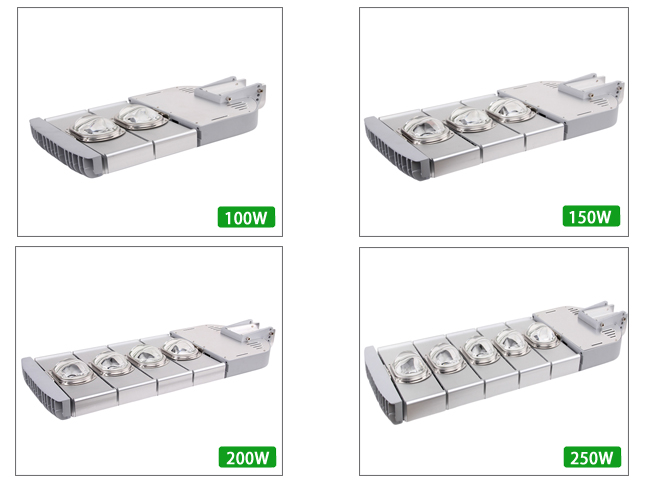

MY-LD-E100-250 series contain: 100W, 150W, 200W, 250W, choose the right lighting power according to different places.

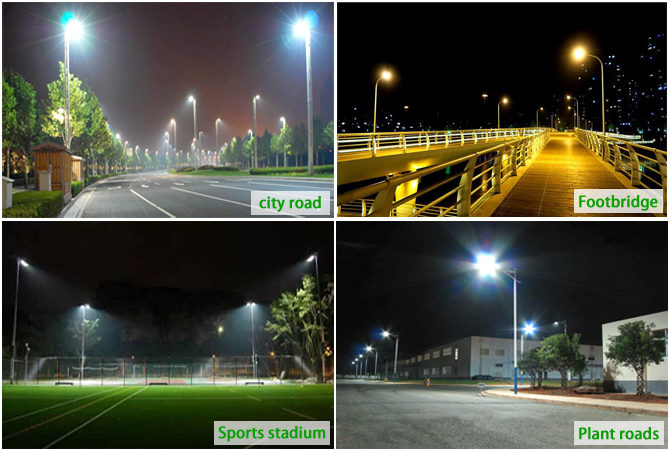

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .
