Product Abstract:

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting . Recommended mounting height: 4-12 meters


Product Description

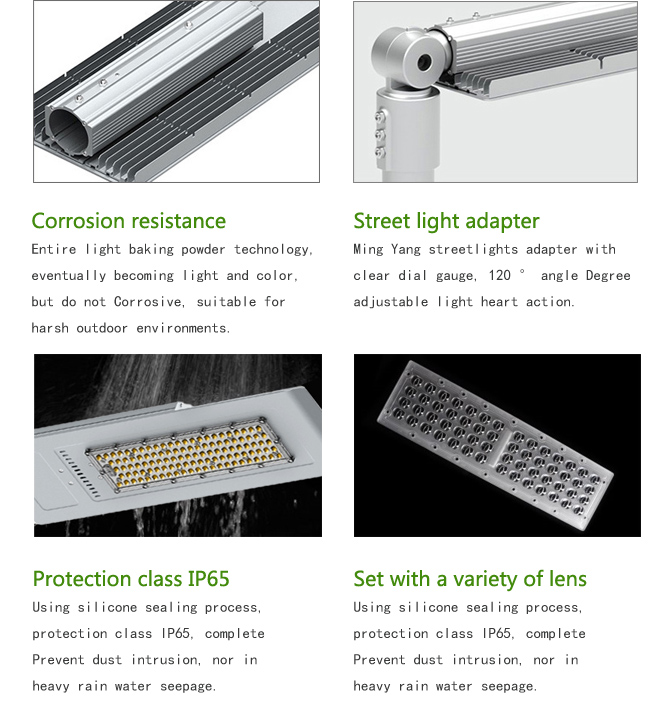

• use whole aluminum lamp cooling technology, perfect and efficient solution LED heat problem, greatly extend the life of the light source;

• PMMA optical lens, a light, an optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

• avoid dust, water design, reducing pressure cleaning and maintenance, protection class IP65, suitable for outdoor harsh environments;

• slim profile design for easy storage and transportation and maintenance;

• high-pressure cast aluminum shell molding by the paint handling, strong resistance to corrosion;

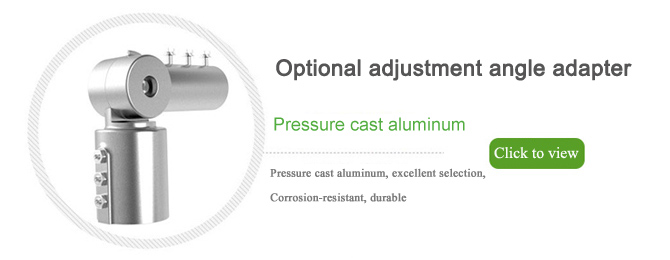

• Can be equipped with lights Ming Yang adapter, 120 ° angle adjustment.

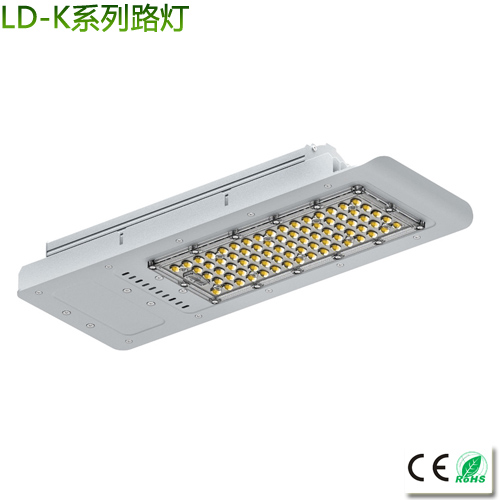

  Product Model  MY-LD-K30-150
 Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   30W、40W、60W、90W、120W、150W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  3300-16500LM
  LEDColor Temperature  3000-3500K/6000-6500K
  Color Rendring Index  Ra>75
  Beam Angle  120°

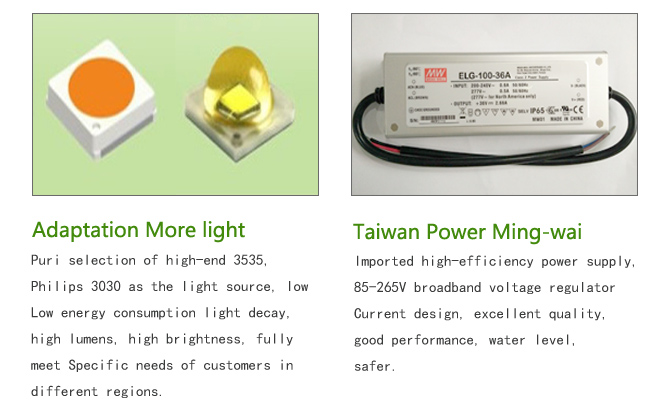

  LED Power Supply  Waterproof drive power
  Light Design  LED lamp beads + PC lens
  Shell Material   Aviation aluminum
  Lamp Size

 30W:365.8X135X84.4mm

 40W:365.8X135X89.3mm

 60W:431.3X160X89.3mm

 90W:431.3X160X89.3mm

 120W:631.7X215X89.8mm

 150W:631.7X215X89.8mm

  Working Temperature  -40°C- +50°C
  IP Grade  IP65
  LED Life  50000H
  Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
  Replace traditional light  Metal halide lamp, sodium lamp

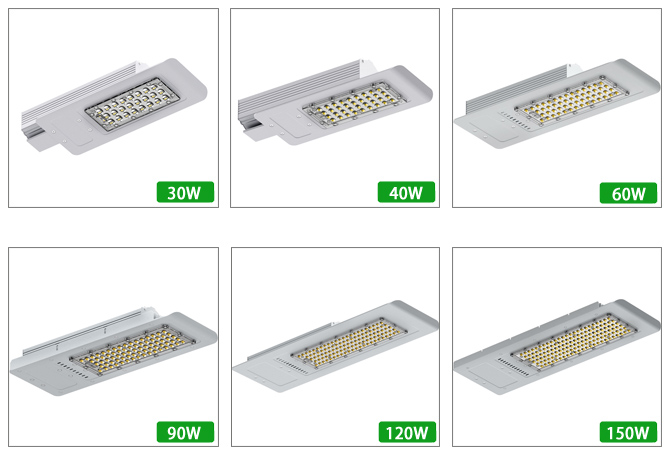

MY-LD-K30-150 series contain: 30W, 40W, 60W, 90W, 120W, 150W, choose the right lighting power according to different places.









Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .
