Integrated LED floodlight 10w-50W

  • LED floodlight 30w-200W cooling fins
  • Integrated LED floodlight 10w-50W
  • High power LED floodlight 70w-100W
  • High power LED floodlight 100w-120W
  • High power LED floodlight 150w-180W
  • Multiple satellites integrated LED floodlight 200w-300W
  • The new integrated LED floodlight 30w-150W
  • The new fin LED floodlight 30w-200W
  • LED floodlight 30w-200W cooling fins
  • Integrated LED floodlight 10w-50W

Product Abstract:

Mainly used in building exterior lighting, landscape lighting, logo and indication lighting, billboard, square lighting, factory workshop, site lighting, mine lighting, stadium, stadium, warehouse, rockeries, bridges and the like.


Product Description

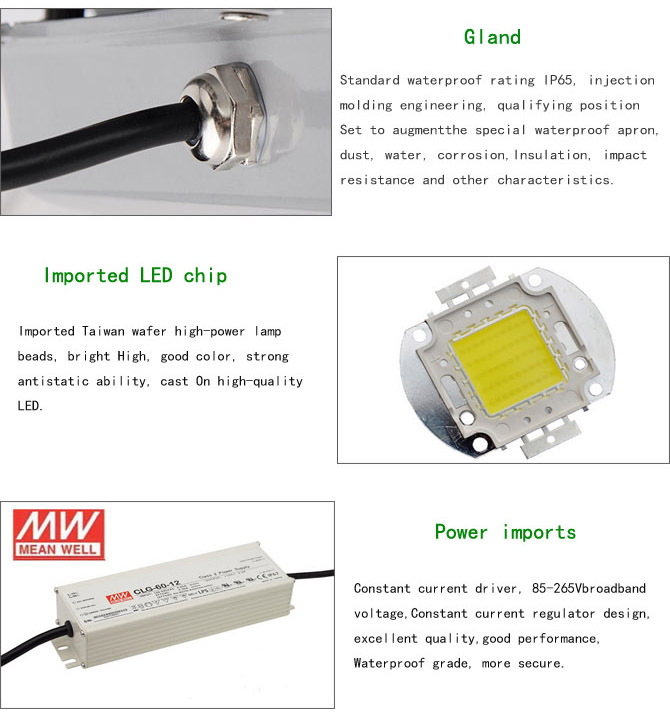

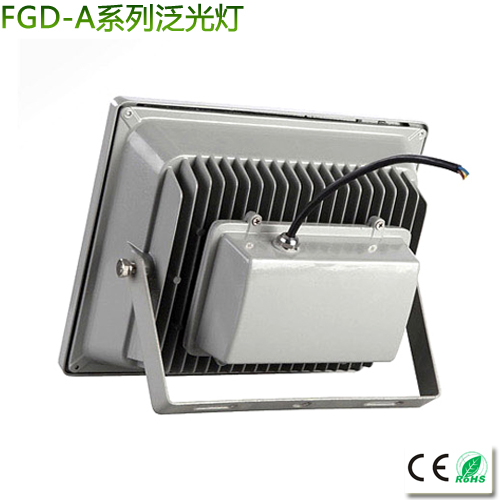

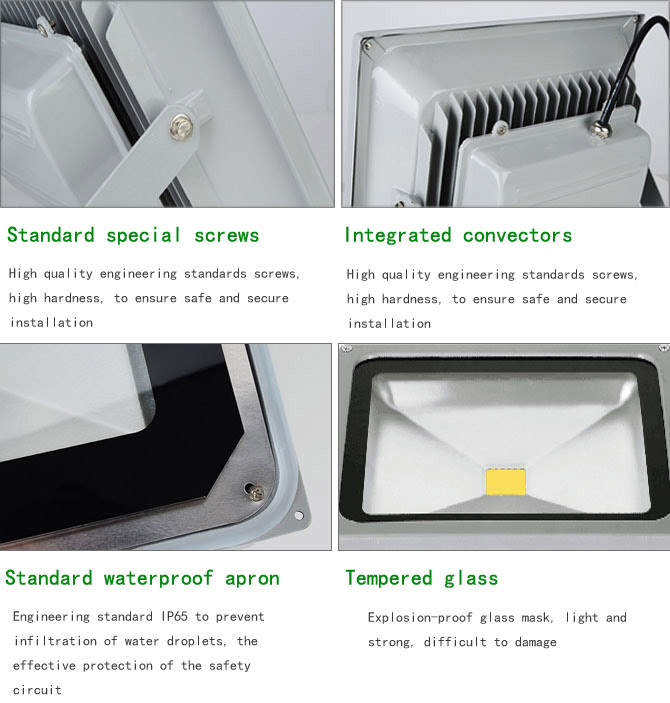

• high thermal conductivity aluminum alloy, bold Vitex convection design, cooling effect, the surface anodizing, polishing, sandblasting, corrosion never rust;

• High-purity aluminum reflector, oxidation, anti-color, reflective effect, glass panels, high-intensity light protection, light transmission rate of 98%;

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic small;

• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, stable light source, and close to natural light;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.

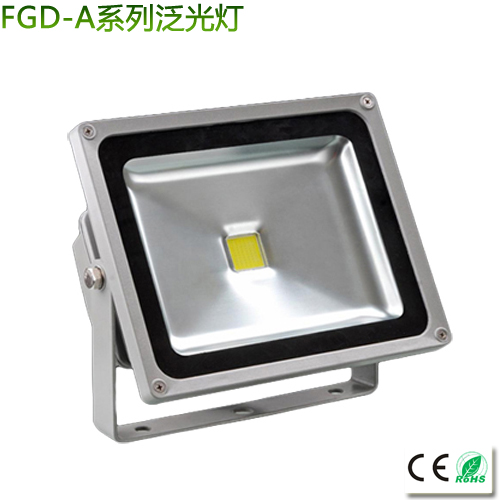

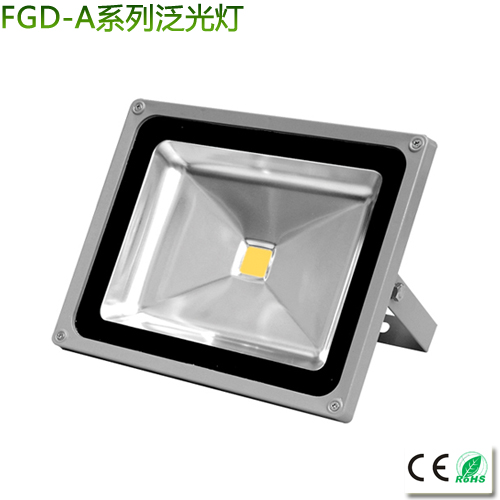

  Product Model  MY-FGD-A10-50
  Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   10W、20W、30W、50W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  1100-5500LM
  LEDColor Temperature  3000-3500K/6000-6500K
  Color Rendring Index  Ra>75
  Beam Angle  120°
  LED Power Supply  Built-in waterproof drive power
  Light Design  LED chip + glass lens with light

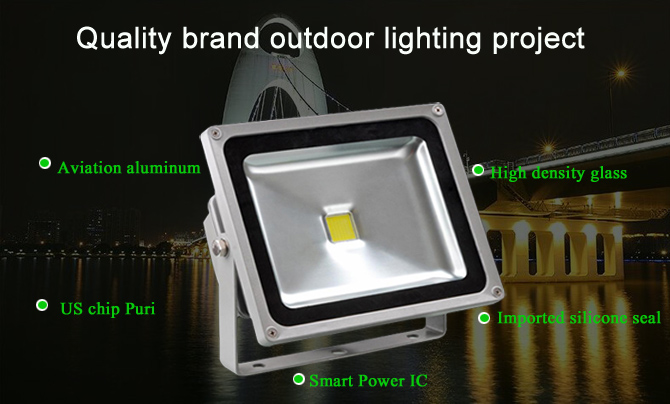

  Shell Material   Aviation aluminum + glass
  Lamp Size

 10W:115X86X80mm

 20W:180X140X100mm

 30W:225X185X120mm

 50W:286X235X150mm

  Working Temperature  -40°C- +50°C
  IP Grade  IP65
  LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground

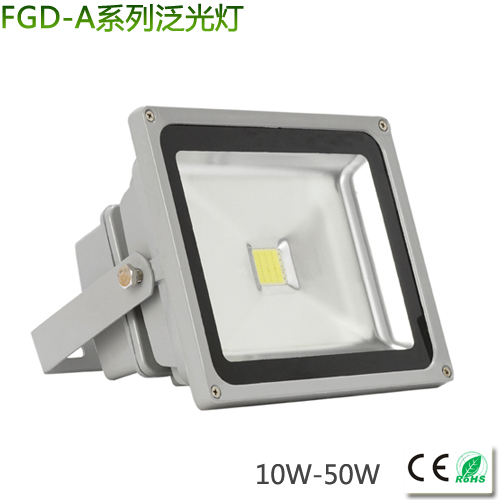

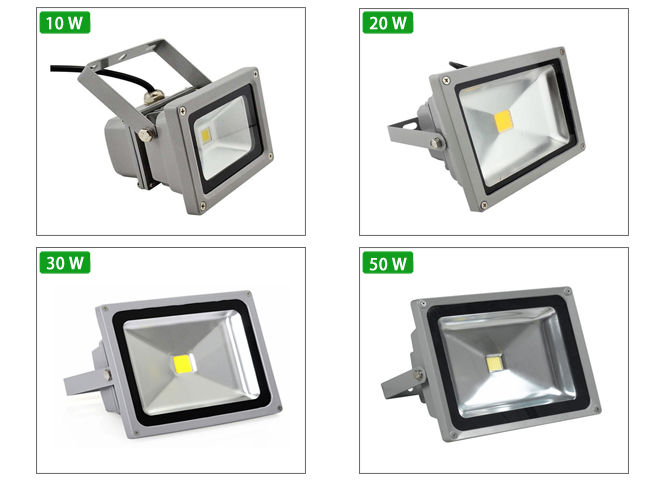

 MY-FGD-A10-50 Series contain: 10W, 20W, 30W, 50W, choose the right lighting power according to different places.

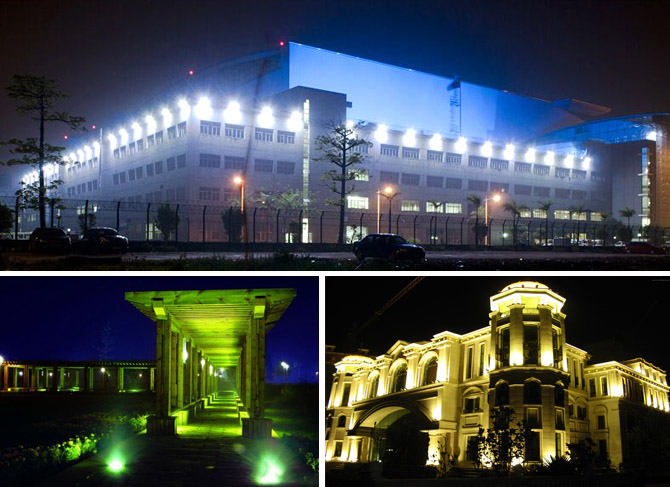

Applications: used in building exterior lighting, landscape lighting, billboard, square lighting, site workshop, mine stadium, rockery bridges, community gardens and other places lighting.
