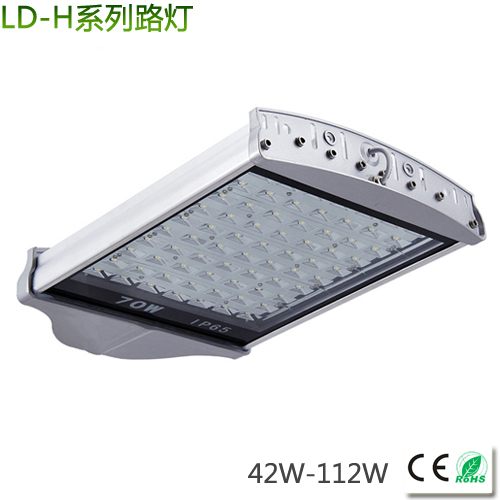

High-power LED street light 42-112W flat

  • Serpentine LED street light 50-120W
  • Bovine LED street light 80-160W
  • Racquet LED street light 50-150W
  • Sword LED lights 30w-150W
  • Beans LED lights 30w-150W
  • Integrated modules LED street light 100w-250W
  • High-power LED street light 60-240W modules
  • High-power LED street light 42-112W flat
  • Adjustable modules LED lights 60w-240W
  • LED street light adapter
  • The new modular LED street light 40-280W
  • Integrated LED lights 30w-150W
  • The new integrated LED street light 50-300W
  • The new modular LED street light 60-210W
  • Slim integration modules LED street light 50-250W

Product Abstract:

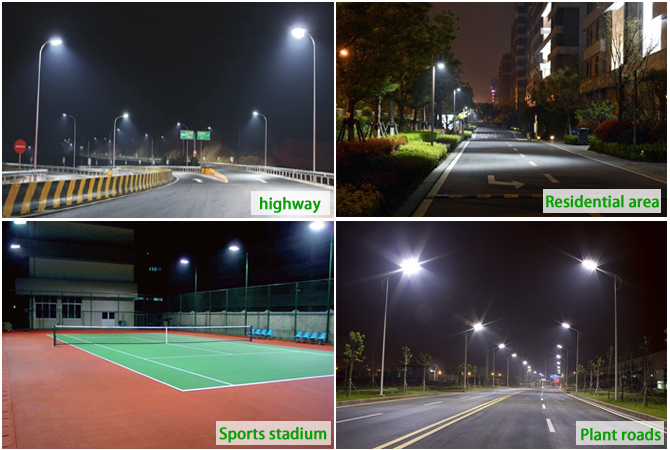

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .


Product Description

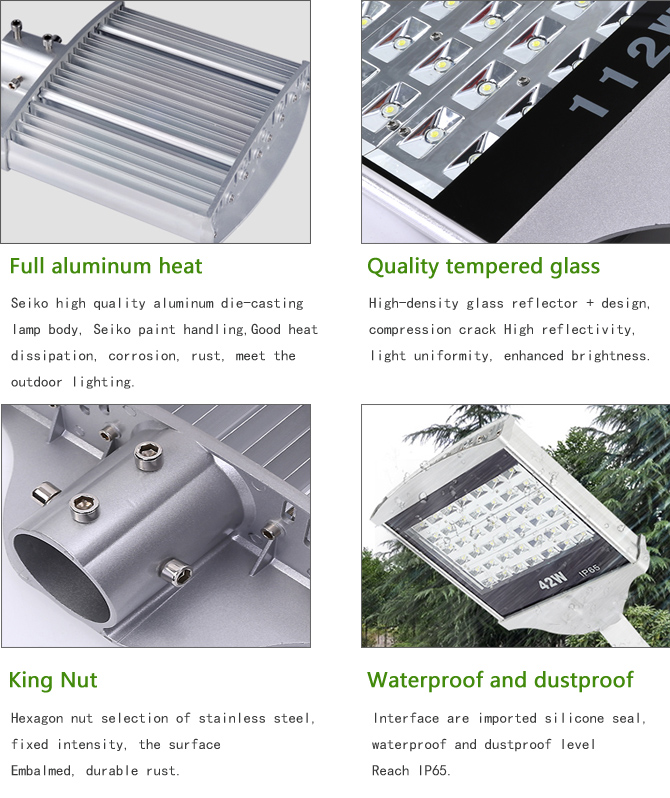

• High-density aluminum air, air flow design, surface anodized and hardened, heat evenly, strong resistance to corrosion, protection class IP65;

• High-purity aluminum reflector, reflective effect, glass panels, high-intensity light protection, light transmission rate of 98%, non-glare, high uniformity;

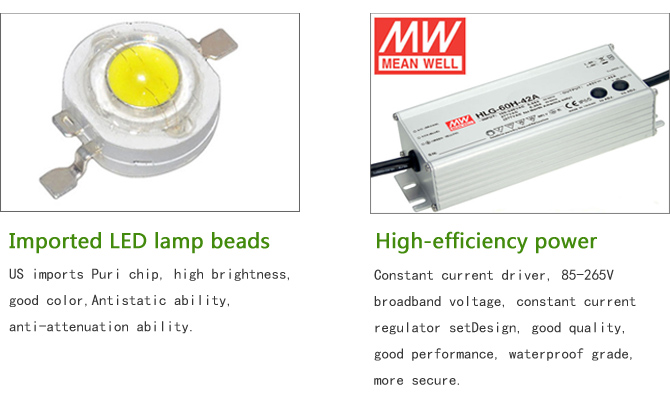

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;

• imported high lumen chips, enough watt light enough, no flicker, no radiation, low light decay, long life, stable light source, light and soft;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.







  Product Model  MY-LD-H42-112
  Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   42W、56W、70W、84W、98W、112W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  4620-12320LM
  LEDColor Temperature  warm light3000-3500K/White6000-6500K
  Color Rendring Index  Ra>75
  Beam Angle  120°
  LED Power Supply  Waterproof drive power
  Light Design  LED chip + glass lens
  Shell Material   Aviation aluminum + glass
  Lamp Size

 42W:245X305X80mm

 56W:305X305X80mm

 70W:365X305X80mm

 84W:425X305X80mm

 98W:485X305X80mm

 112W:545X305X80mm

  Working Temperature  -40°C- +50°C
 IP Grade  IP65
  LED Life  50000H
  Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
  Replace traditional light  Metal halide lamp, sodium lamp

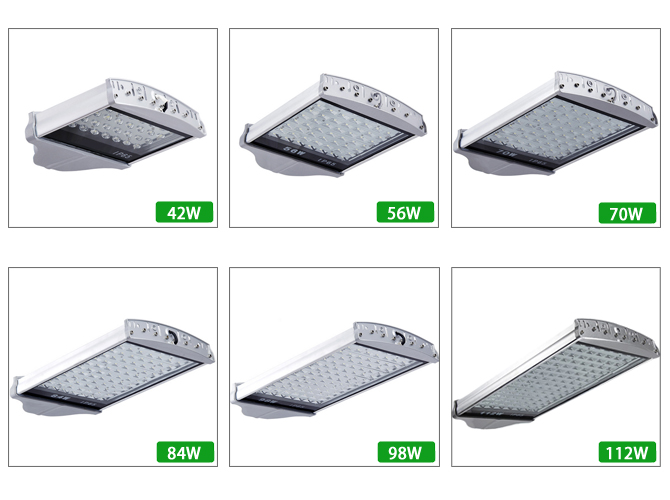

MY-LD-H42-112 series contain: 42W, 56W, 70W, 84W, 98W, 112W, choose the right lighting power according to different places.







Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .
