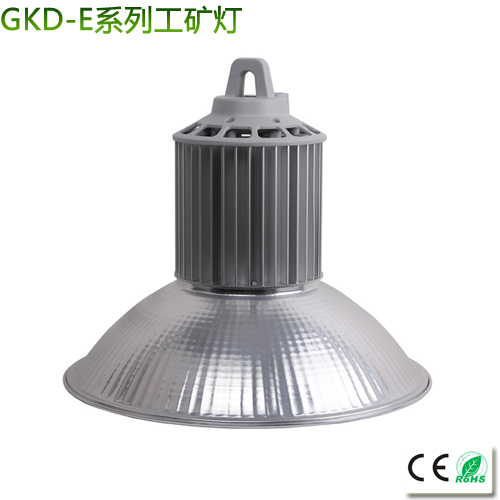

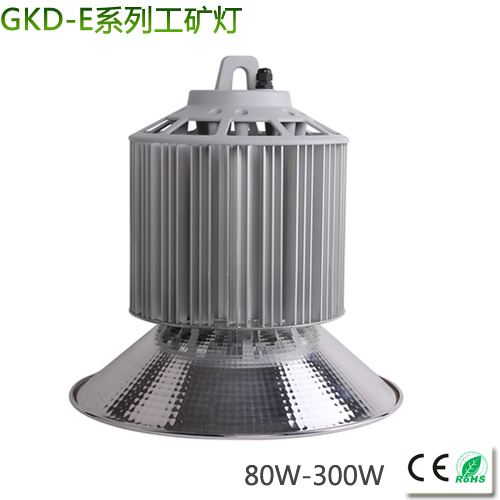

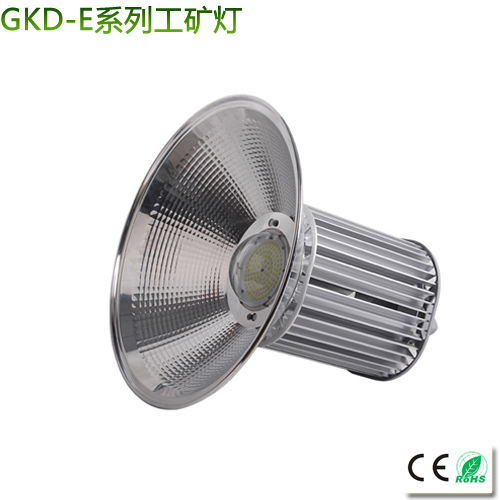

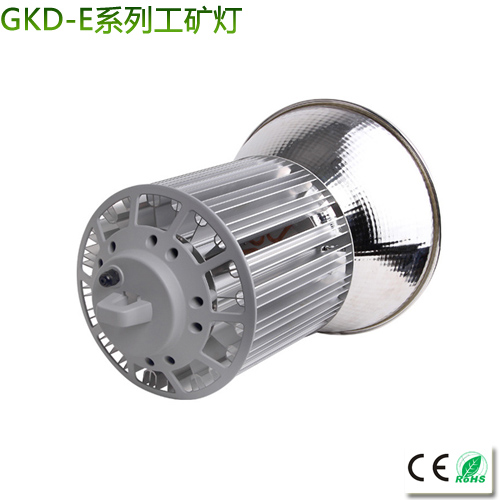

Heat pipe cooling LED Bay Light 80-300W

Home > LED industrial and mining lamp > Heat pipe cooling LED Bay Light 80-300W

Product Name:

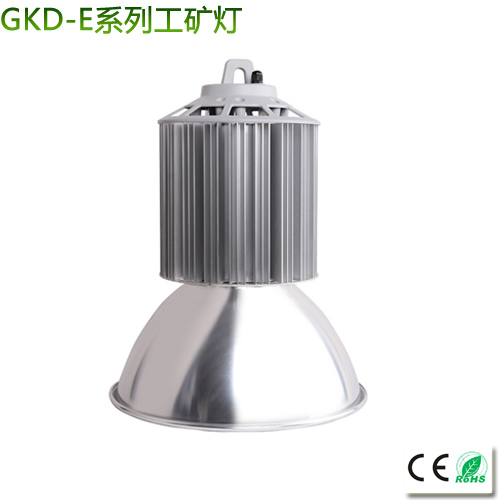

Heat pipe cooling LED Bay Light 80-300W
Model No.:
MY-GKD-E80-300
Brand:
Ming Yang lighting
Attachment download

Product Abstract:

Applications: LED mining lamp suitable for shipyards, mines, workshops, factories, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other tall private room lighting.

Product Description

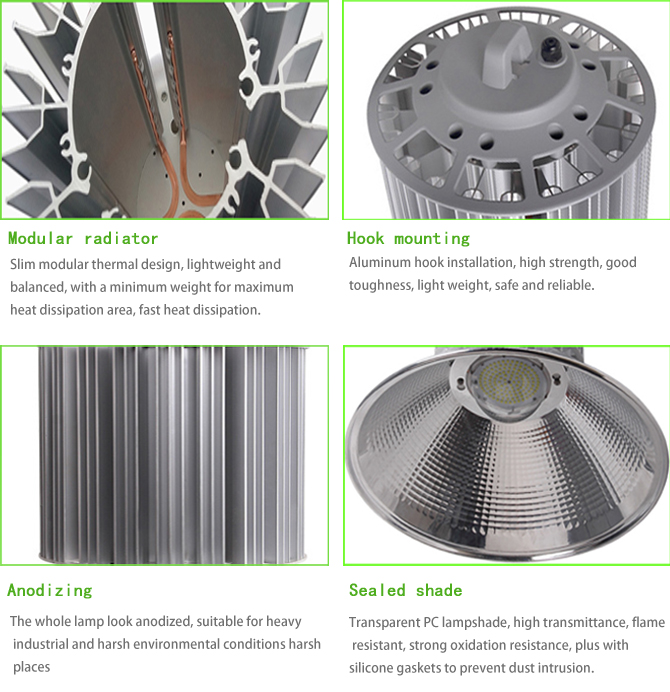

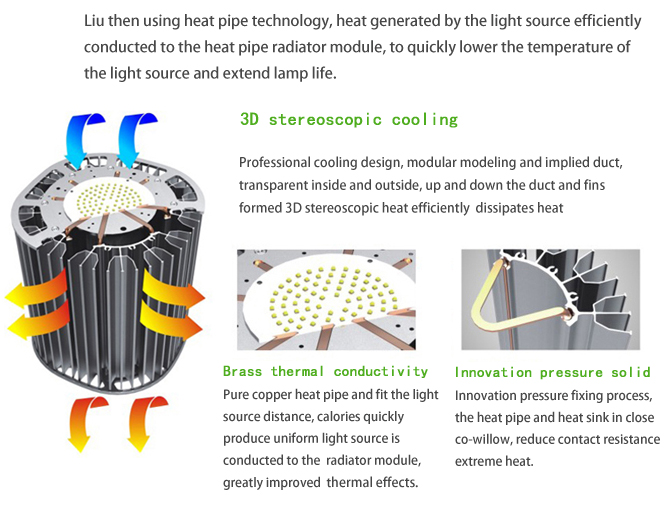

• Innovative brass cooling process, a modular cooling body composition, light and strong, to achieve maximum cooling effect with minimum weight;

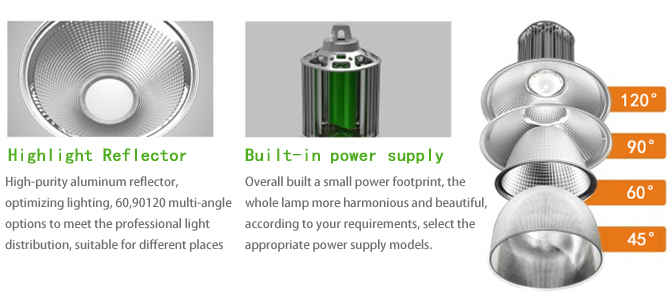

• Scale High purity aluminum reflector, excellent lighting performance, 45 ° -120 ° multi-angle options to meet the professional light distribution, to adapt to different situations;

• Mitsubishi arc lens optical grade, light uniformity, the optical efficiency of 98%, non-glare, high uniformity, 0.5 above;

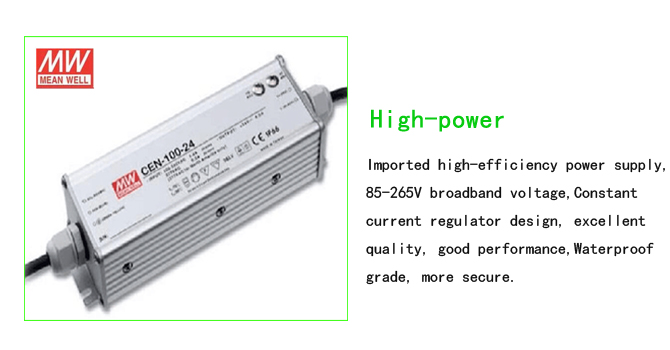

• High-power constant-current drive power, wide voltage input AC85-265V, power factor> 0.95, harmonic small;

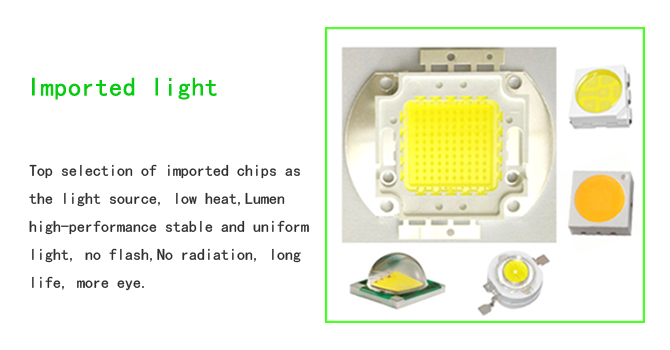

• Imported chip COB package and high lumens single high-power LED as the light source, the color is good, light stability, and close to natural light;

• the entire lighting efficiency 95-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.

Product Model	MY-GKD-E300
Lamp Size	80W：120 degrees398182φ500mm、45 degree443182φ395mm 100W：120 degrees435182φ500mm、45 degree480182φ395mm 120W：120 degrees485182φ500mm、45 degree480182φ395mm 150W：120 degrees453225φ500mm、45 degree498225φ395mm 200W：120 degrees493225φ500mm、45 degree538225φ395mm 250W：120 degrees470284φ500mm、45 degree518284φ395mm 300W：120 degrees510284φ500mm、45 degree555284φ395mm
Input Voltage	AC85-265V
Freqency Range	50HZ-60HZ
Power Factor	>0.95
Power Efficiency	>90%
LED Power	80W、100W、120W、150W、200W、250W、300W
LED Luminous Efficiency	95-110Lm/W
LED Intial Flux	8800-33000LM
LEDColor Temperature	Warm White3000-3500K/It is white6000-6500K
Color Rendring Index	Ra>80
Beam Angle	45°、60°、90°、120°
LED Power Supply	Built-in waterproof drive power
Light Design	LED lamp beads + PC cover with light
Shell Material	Seiko aerospace aluminum
Working Temperature	-40°C- +50°C
IP Grade	IP45
LED Life	50000H
Power Cables	Brown: L FireWire, blue: N zero line, yellow-green: G Ground

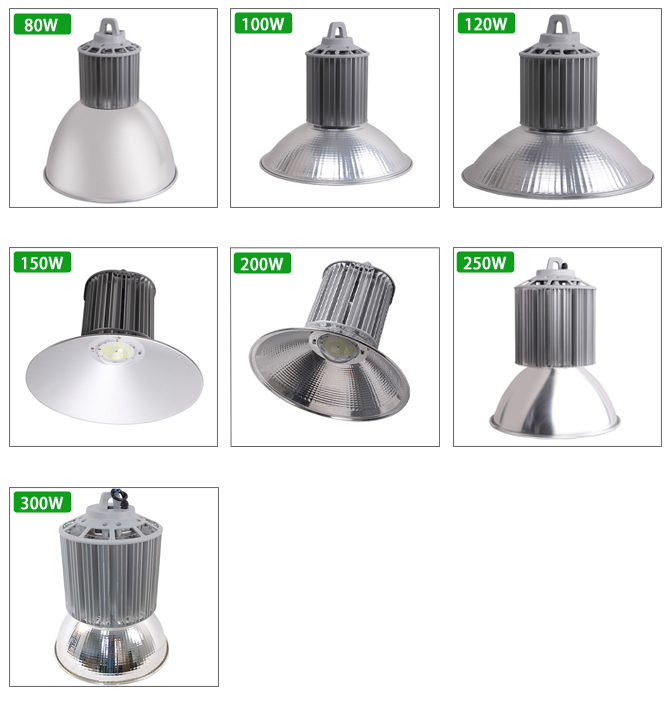

MY-GKD-E80-300 series contain: 80W, 100W, 120W, 150W, 200W, 250W, 300W, choose the right lighting power according to different places.

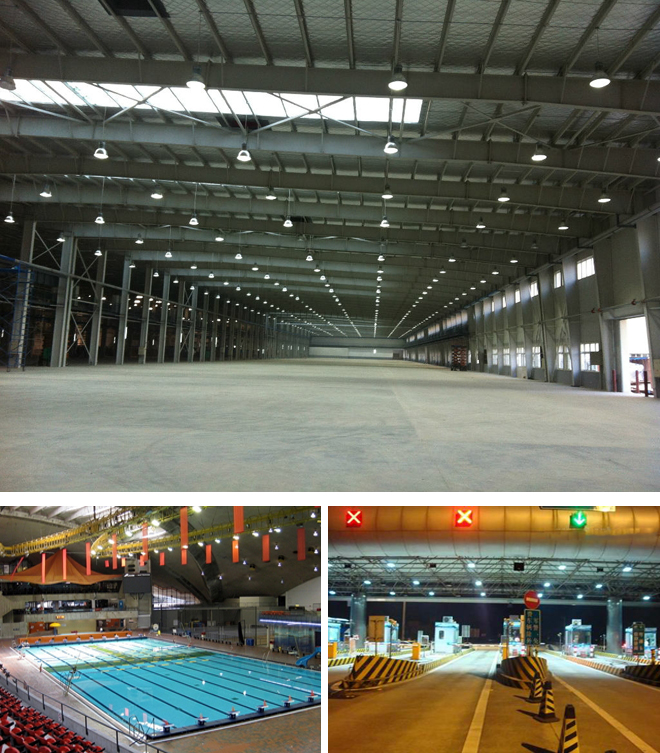

Gao is widely used in the plant, other places need lighting workshop warehouses, logistics centers, exhibition halls, shipyards, mines, highway toll stations, gas stations, supermarkets, farmers markets.
