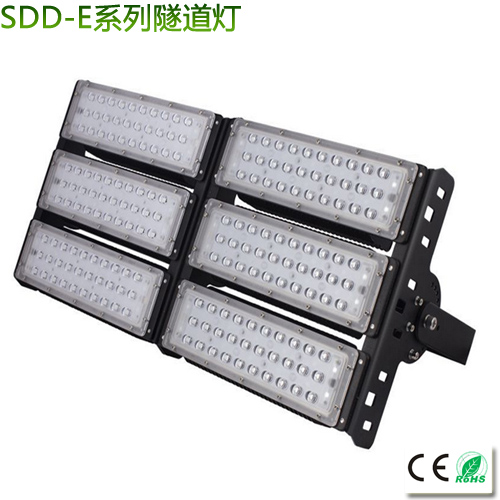

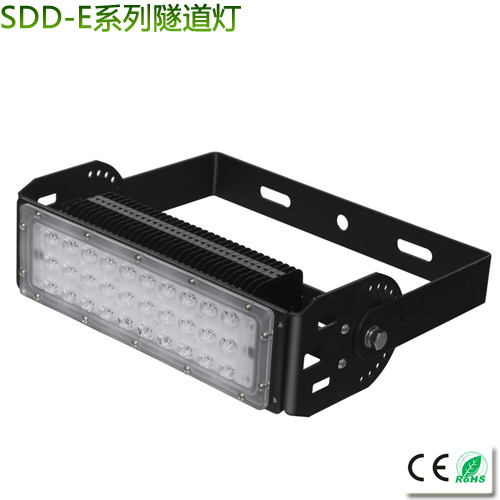

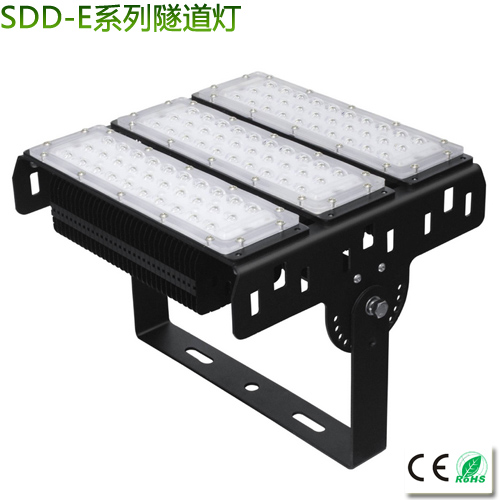

Fin modules LED Tunnel Light 50- 300W
Product Name:
Fin modules LED Tunnel Light 50- 300WModel No.:
MY-SDD-E50-300Brand:
Ming Yang lighting
Product Abstract:
Applications: Widely used in highway tunnels, billboards, stadiums, squares, factories, parking, gas stations, toll stations, residential areas, parks and tourist attractions, building facade lighting, and other places of lighting required.
- Product Description

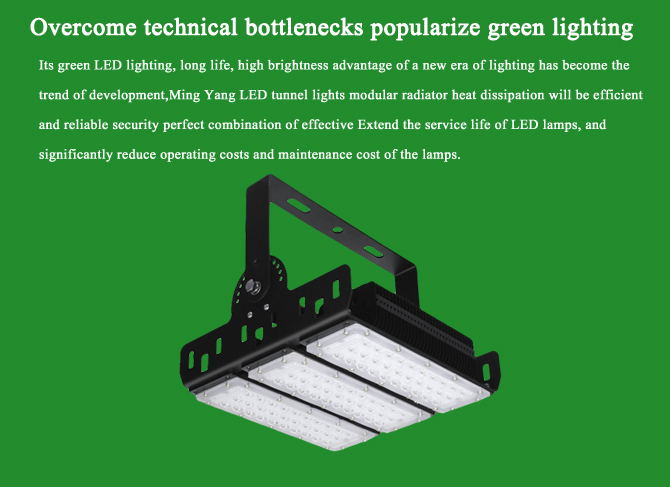

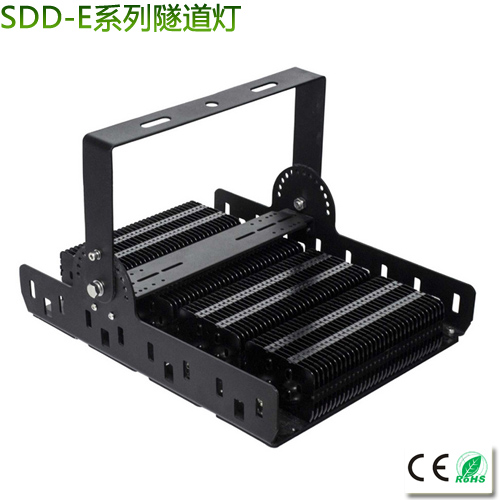

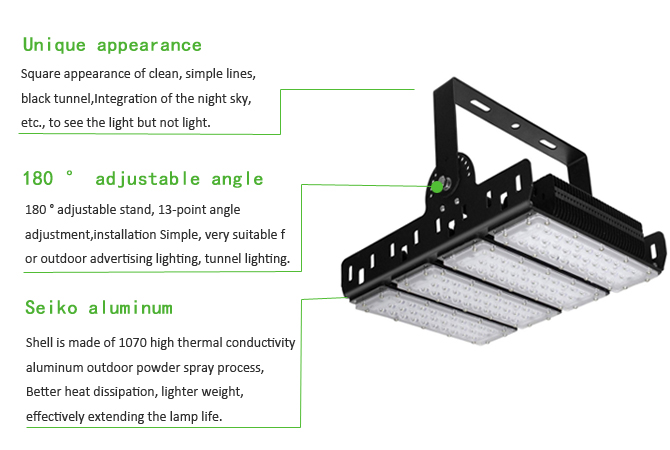

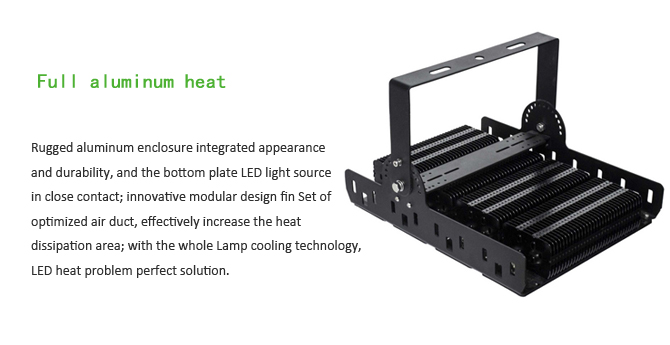

• Full high-purity aluminum, fin set of air convection design, the overall heat dissipation, surface anodized and hardened, strong resistance to corrosion, protection class IP65;

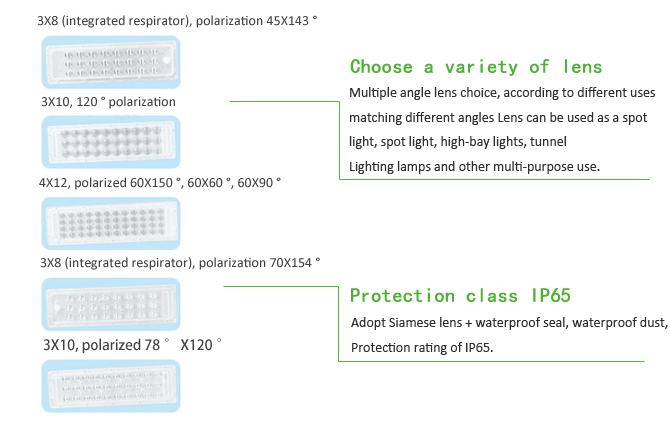

• Integrated PMMA lens, light uniformity, the optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

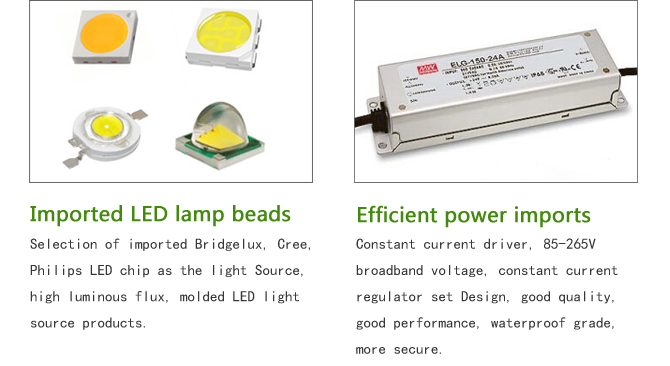

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;
• imported high lumen chips, enough watt light enough, no flicker, no radiation, low light decay, long life, stable light source, light and soft;
• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.
Product Model MY-SDD-E50-300 Input Voltage
AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency
>90% LED Power 50W-300W LED Luminous Efficiency 95-110Lm/W LED Intial Flux 5500-33000LM LEDColor Temperature 3000-3500K/6000-6500K Color Rendring Index Ra>80 Beam Angle 120° LED Power Supply Imported waterproof drive power Light Design LED lamp beads + optical lens Shell Material Aviation aluminum + PC lens Working Temperature -40°C- +50°C IP Grade IP65 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground Replace traditional light Metal halide lamp, sodium lamp

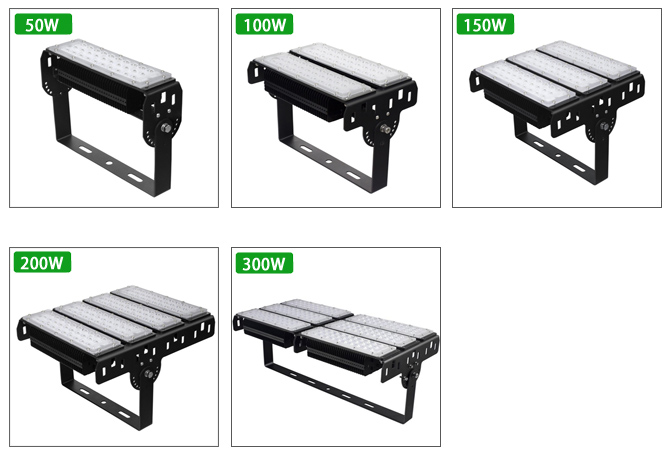

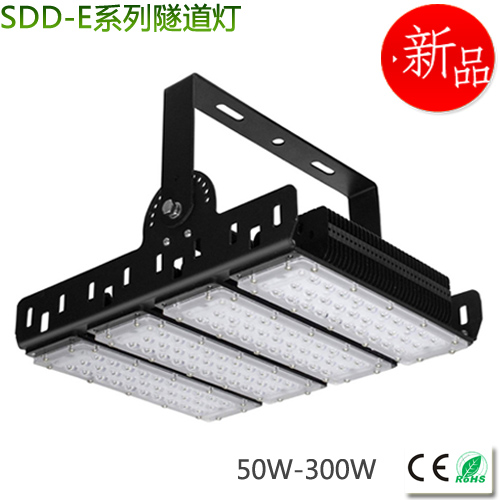

MY-SDD-E50-300 series contain: 50W, 100W, 150W, 200W, 300W, choose the right lighting power according to different places.

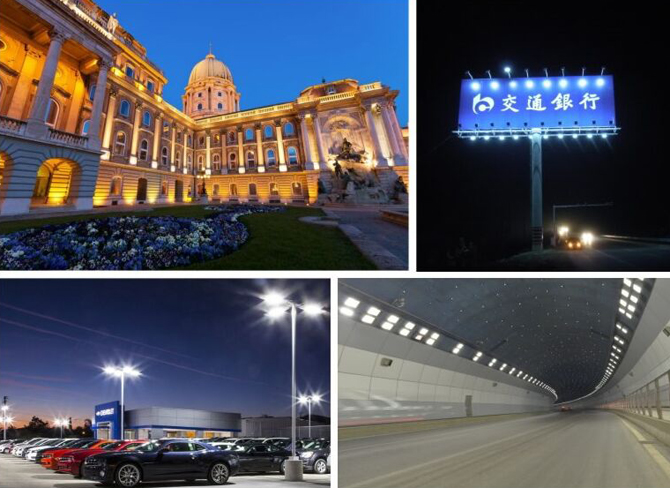

Applications: Widely used in highway tunnels, billboards, stadiums, squares, factories, parking, gas stations, toll stations, residential areas, parks and tourist attractions, building facade lighting, and other places of lighting required.
