Fin heat LED mining lamp 80w-300W

Home > LED industrial and mining lamp > Fin heat LED mining lamp 80w-300W

Product Name:

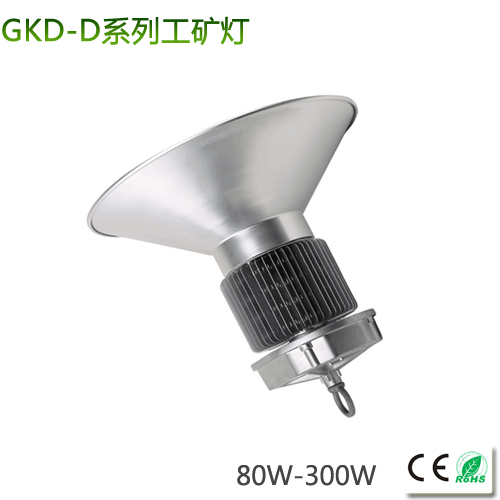

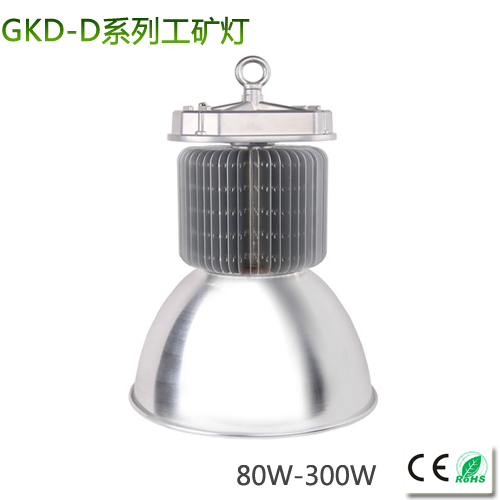

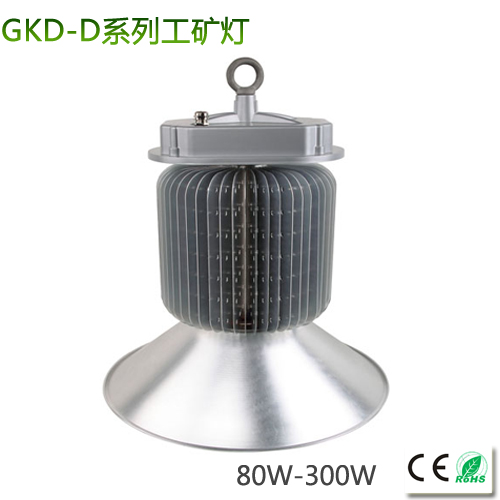

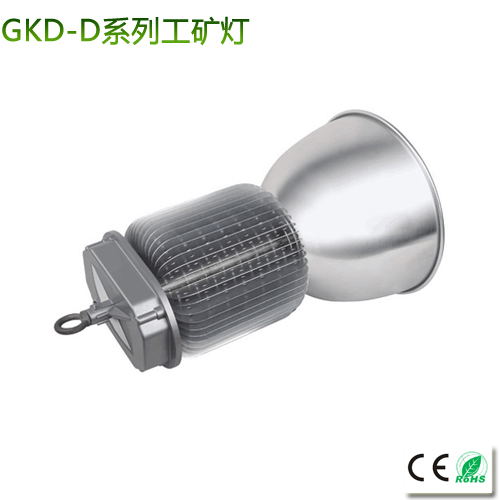

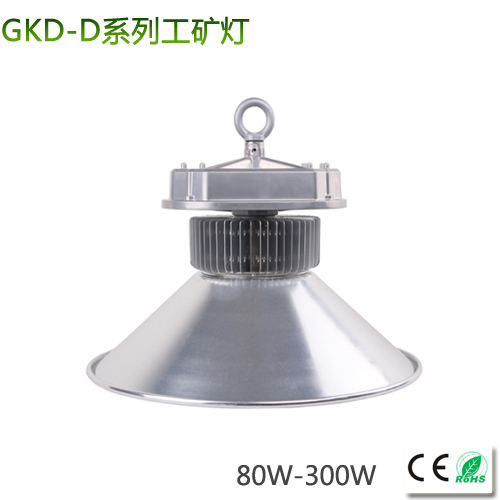

Fin heat LED mining lamp 80w-300W
Model No.:
MY-GKD-D80-300
Brand:
Ming Yang lighting
Attachment download

Product Abstract:

Applications: LED mining lamp suitable for shipyards, mines, workshops, factories, warehouses, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other tall private room lighting.

Product Description

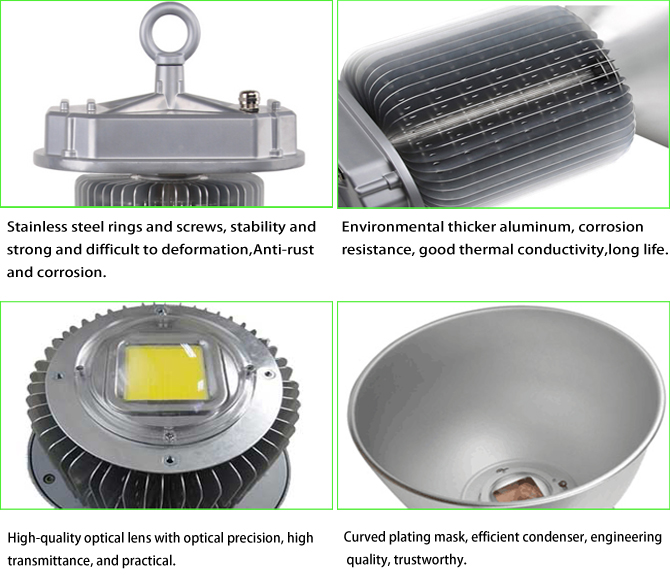

• High purity 1060 aluminum alloy casting, modular radiator fins, light weight, heat dissipation area, rapid cooling;

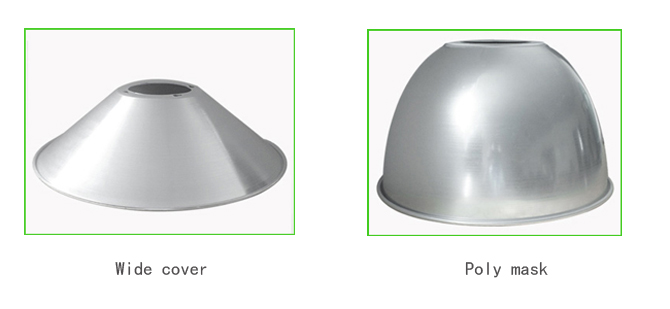

• high hardness aluminum reflector and matte anodized diffuse process, light uniformity, corrosion resistance, never fade;

• High temperature protection PC lens light source, optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

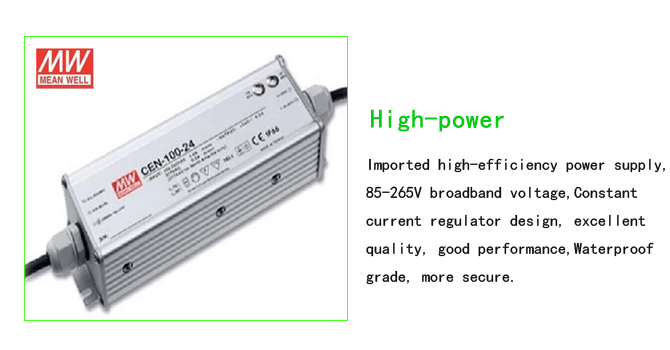

• High-power constant-current drive power, wide voltage input AC85-265V, power factor> 0.95, harmonic small;

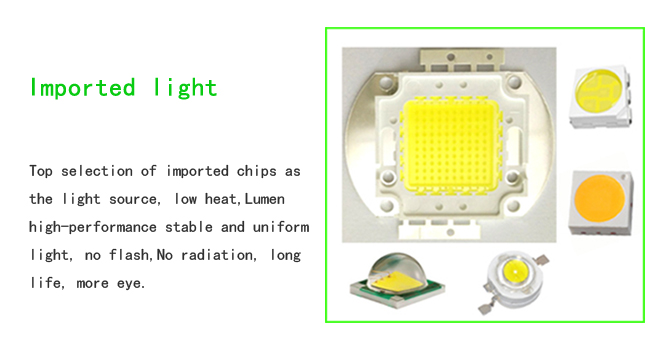

• imported high lumen chips, enough watt light enough, no flicker, no radiation, low light decay, long life, stable light source, and close to natural light;

• the entire lighting efficiency 95-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.

Product Model	MY-GKD-D80-300
Lamp Size	80W：120 degrees365275φ500mm、45 degree475275φ420mm 100W：120 degrees405275φ500mm、45 degree515275φ420mm 120W：120 degrees435275φ500mm、45 degree545275φ420mm 150W：120 degrees435275φ500mm、45 degree545275φ420mm 200W：120 degrees515275φ500mm、45 degree625275φ420mm 300W：120 degrees575300φ500mm、45 degree685300φ420mm
Input Voltage	AC85-265V
Freqency Range	50HZ-60HZ
Power Factor	>0.95
Power Efficiency	>90%
LED Power	80W、100W、120W、150W、200W、300W
LED Luminous Efficiency	95-110Lm/W
LED Intial Flux	8800-33000LM
LEDColor Temperature	warm light：3000K、White：6500K
Color Rendring Index	Ra>80
Beam Angle	45°、90°、120°
LED Power Supply	内置防水驱动电源
Light Design	LED lamp beads + PC cover with light
Shell Material	Seiko aerospace aluminum
Working Temperature	-40°C- +50°C
IP Grade	IP45
LED Life	50000H
Power Cables	Brown: L FireWire, blue: N zero line, yellow-green: G Ground

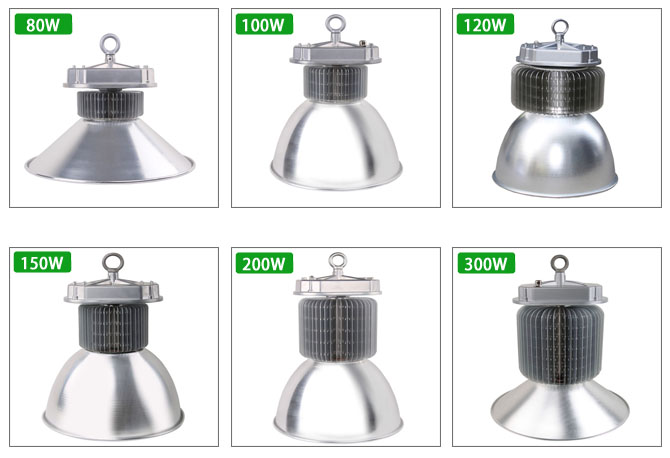

MY-GKD-D80-300 series contain: 80W, 100W, 120W, 150W, 200W, 300W, choose the right lighting power according to different places.

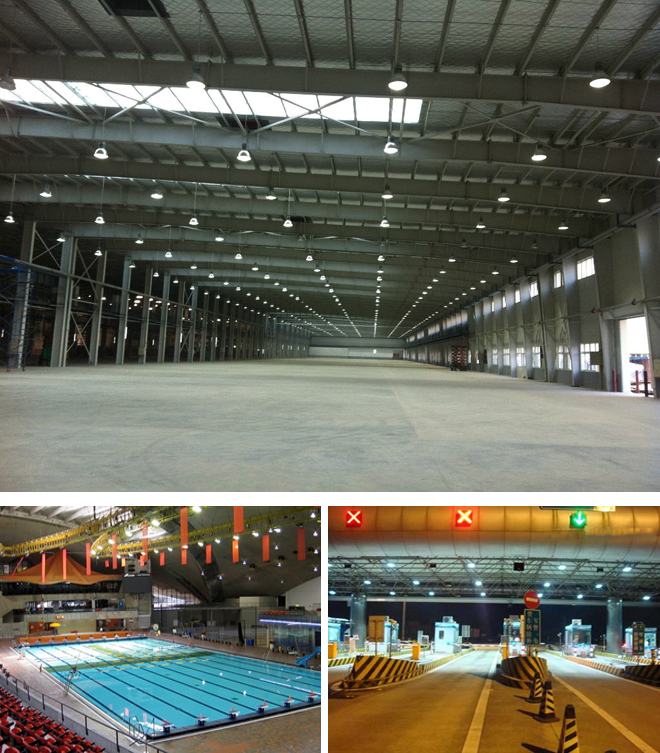

Gao is widely used in the plant, other places need lighting workshop warehouses, logistics centers, exhibition halls, shipyards, mines, highway toll stations, gas stations, supermarkets, farmers markets.
