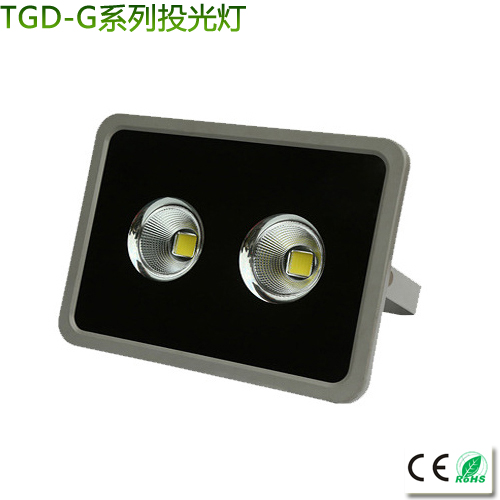

COB LED flood light converging 100w-300W

Home > LED Flood Light > COB LED flood light converging 100w-300W

Product Name:
COB LED flood light converging 100w-300W
Model No.:
MY-TGD-G100-300
Brand:
Ming Yang lighting
Attachment download

Product Abstract:

Mainly used in building exterior lighting, landscape lighting, logo and indication lighting, billboard, square lighting, factory workshop, site lighting, mine lighting, stadium, stadium, warehouse, rockeries, bridges and the like.

Product Description

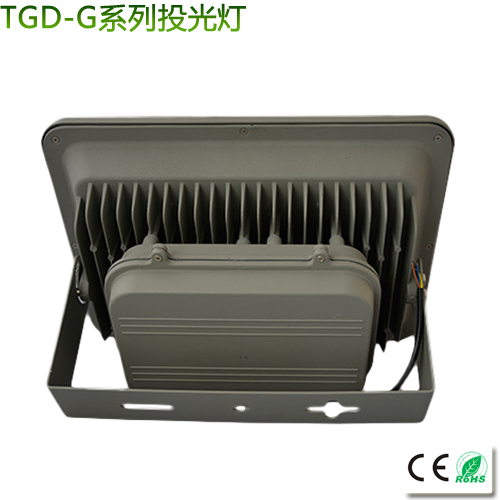

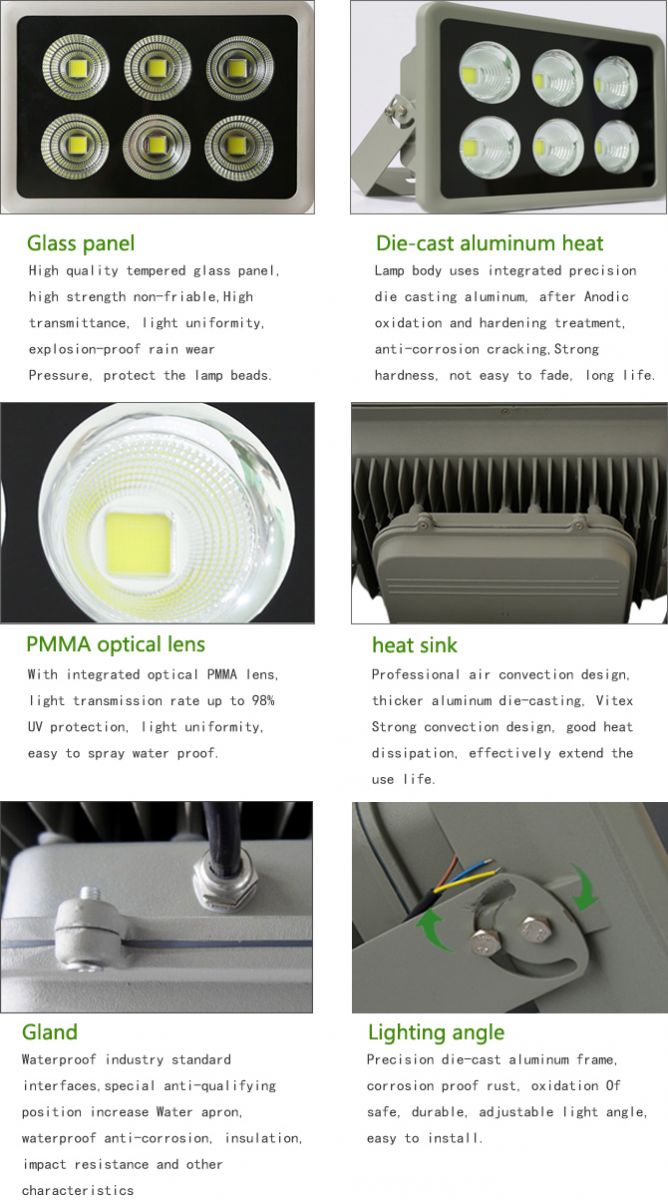

• high thermal conductivity aluminum alloy, bold Vitex convection design, cooling effect, the surface anodizing, polishing, sandblasting, corrosion never rust;

• High-purity aluminum reflector, oxidation, anti-color, reflective effect, glass panels, high-intensity light protection, light transmission rate of 98%;

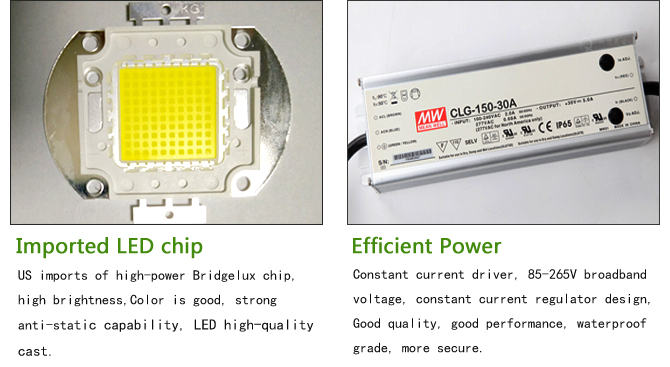

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic small;

• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, stable light source, and close to natural light;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.

Product Model	MY-TGD-G100-300
Input Voltage	AC85-265V
Freqency Range	50HZ-60HZ
Power Factor	>0.95
Power Efficiency	>90%
LED Power	100W、120W、150W、180W、200W、250W、300W
LED Luminous Efficiency	90-110Lm/W
LED Intial Flux	11000-33000LM
LEDColor Temperature	3000-3500K/6000-6500K
Color Rendring Index	Ra>75
Beam Angle	60°
LED Power Supply	Built-in waterproof drive power
Light Design	LED lamp beads and glass lens with light
Shell Material	Aviation aluminum + glass
Lamp Size	100W:335X235X160mm 120W:335X235X160mm 150W:385X285X250mm 180W:385X285X250mm 200W:385X285X250mm 250W:425X330X220mm 300W：455X325X225mm
Working Temperature	-40°C- +50°C
IP Grade	IP65
LED Life	50000H
Power Cables	Brown: L FireWire, blue: N zero line, yellow-green: G Ground

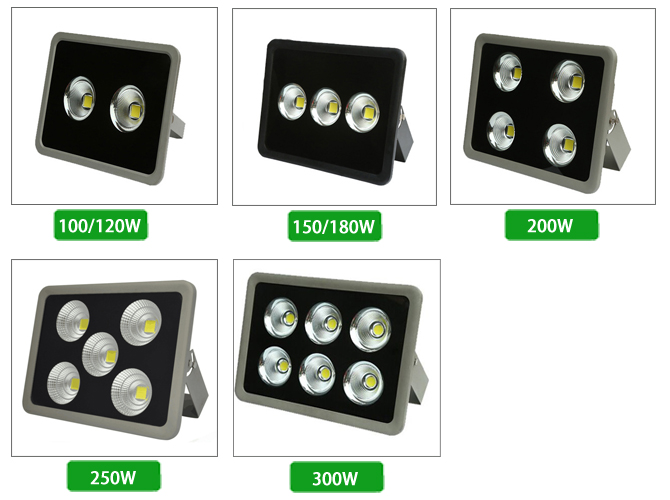

MY-TGD-F100-250 series contain: 100W, 120W, 150W, 180W, 200W, 250W, 300W, choose the right lighting power according to different places.

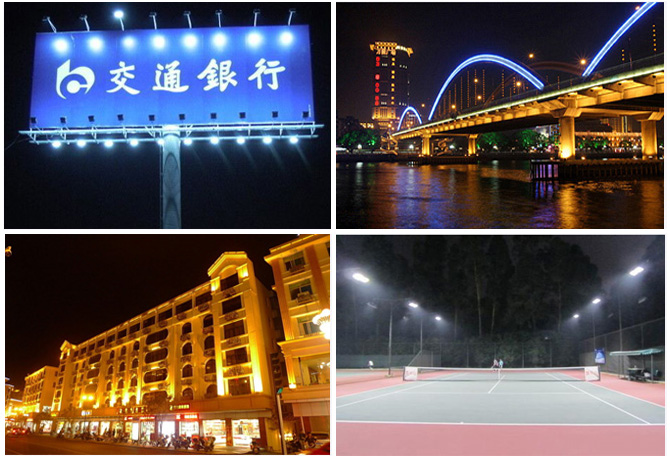

Applications: used in building exterior lighting, landscape lighting, billboard, square lighting, lighting golf course, site workshop, mine stadium, rockery bridges, community gardens and other places of lighting required.
