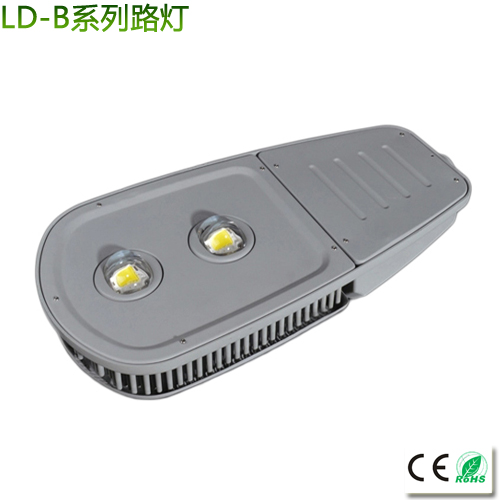

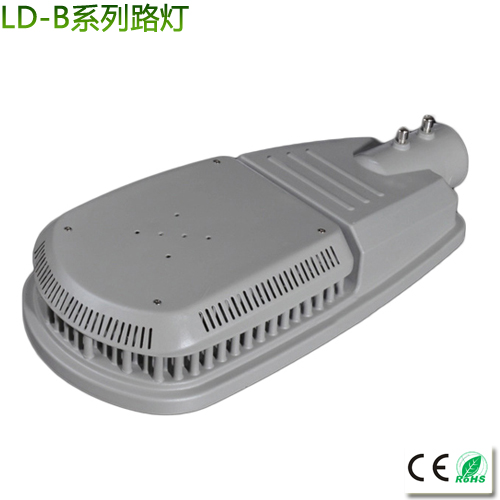

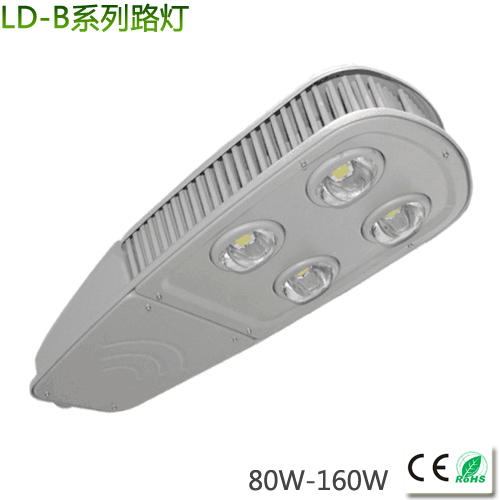

Bovine LED street light 80-160W

  • Serpentine LED street light 50-120W
  • Bovine LED street light 80-160W
  • Racquet LED street light 50-150W
  • Sword LED lights 30w-150W
  • Beans LED lights 30w-150W
  • Integrated modules LED street light 100w-250W
  • High-power LED street light 60-240W modules
  • High-power LED street light 42-112W flat
  • Adjustable modules LED lights 60w-240W
  • LED street light adapter
  • The new modular LED street light 40-280W
  • Integrated LED lights 30w-150W
  • The new integrated LED street light 50-300W
  • The new modular LED street light 60-210W
  • Slim integration modules LED street light 50-250W

Product Abstract:

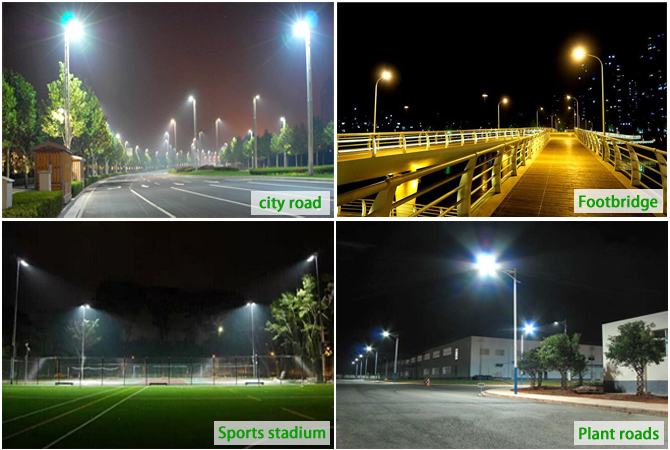

Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .


Product Description

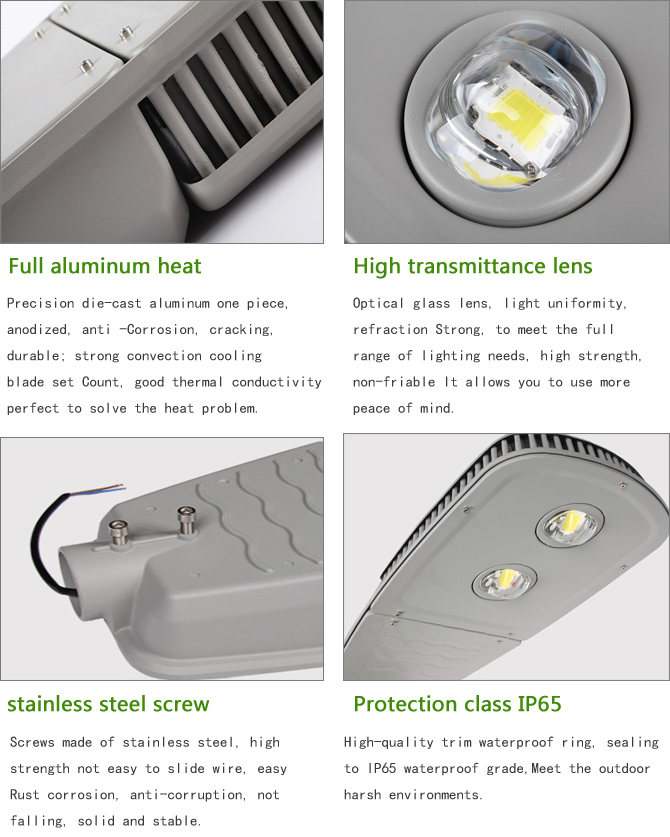

• high thermal conductivity aluminum alloy casting, strong convection design, heat more evenly, the surface anodizing, polishing, sandblasting and other processing, strong resistance to corrosion, never rust;

• optical glass lens, a light, an optical efficiency of 98%, non-glare, high uniformity, 0.5 above;

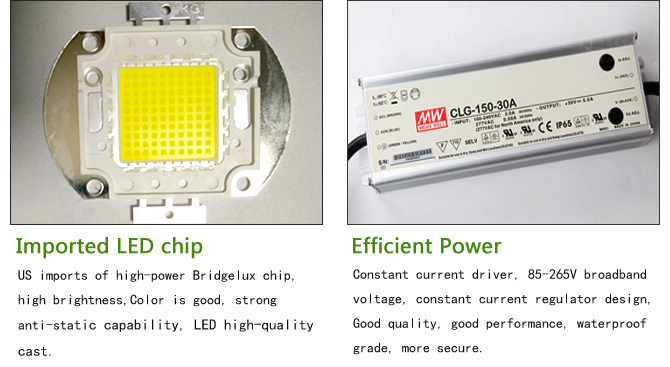

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;

• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, good heat dissipation, light decay, high brightness, more stable;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.





  Product Model  MY-LD-B80-160
  Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   80W、120W、160W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  8800-17600LM
  LEDColor Temperature  warm light3000-3500K/White6000-6500K
  Color Rendring Index  Ra>75
  Beam Angle  120°
  LED Power Supply Waterproof drive power
  Light Design  LED lamp beads + optical lens
  Shell Material   Aviation aluminum + glass
  Lamp Size

 80W:545X265X110mm

 120W:700X350X110mm

 160W:700X350X110mm

  Working Temperature  -40°C- +50°C
  IP Grade  IP65
  LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
 Replace traditional light  Metal halide lamp, sodium lamp

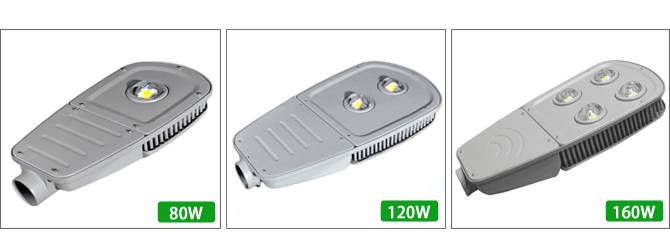

      MY-LD-B80-160 series contain: 80W, 120W, 160W, choose the right lighting power according to different places.





Applications: widely used in urban trunk roads, highways, elevated roads, city streets, bridges, sidewalks and other road lighting, as well as squares, schools, residential areas, industrial areas, scenic areas, playgrounds, parks and other places need outdoor lighting .
